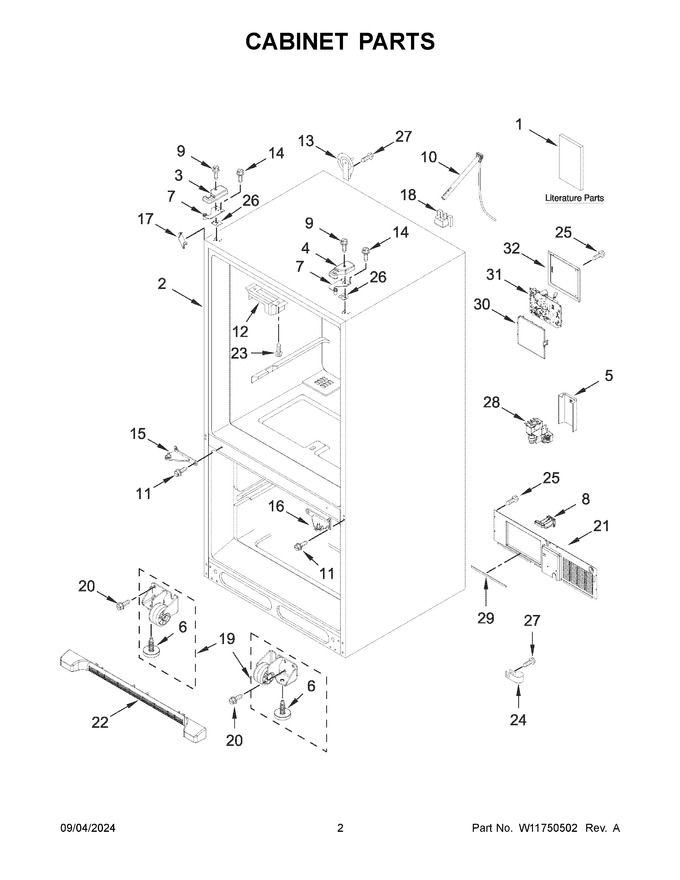

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11580822 | Owners Manual |
|
- | |||||
| 2 | ARI89959A0406B9B609EB9764890B107614 | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10337647 | Cover, Top Hinge Left Hand (includes Foil) (black) |
|
Immediately | $ 23.33 | ||||
| 4 | WP67005956 | Cover, Top Hinge Right Hand (black) (Replaces: 12962302B) |
|
$ 22.54 | |||||
| 5 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: W11456626) |
|
$ 31.92 | |||||
| 8 | W10528513 | Sweep, Dual Tube |
|
$ 43.74 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11817981 | Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 91.27 | ||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 13 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11642008 | Hinge, Center (left Hand) (Replaces: W11610757) |
|
$ 24.35 | |||||
| 16 | W11642010 | Hinge, Center (right Hand) (Replaces: W11610758) |
|
$ 24.47 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | W11686793 | Block, Fill Tube (Replaces: W11651067) |
|
$ 23.57 | |||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 22 | WPW10534153 | Assembly, Grille (includes Clips) (black) (Replaces: W10534153) |
|
$ 154.57 | |||||
| 23 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 24 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 25 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 26 | 12999501 | Shim, Hinge (left Hand) |
|
$ 99.53 | |||||
| 27 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 28 | W11524655 | Valve, Water Inlet (Replaces: W11446816) |
|
Immediately | $ 118.72 | ||||
| 29 | W11534848 | Gasket |
|
Immediately | $ 22.34 | ||||
| 30 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 85.16 | |||||
| 31 | WPW10317076 | Board, Hv Control (Replaces: W10317076) |
|
Immediately | $ 412.84 | ||||
| 32 | 12961602 | Cover, Control Box |
|
$ 116.19 | |||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 1A | W11730571 | Energy Guide |
|
- | |||||
| 1B | W11623343 | Tech Sheet |
|
- | |||||
| 26A | 12999502 | Shim, Hinge (right Hand) |
|
$ 100.60 | |||||
| 7A | W11592374 | Hinge, Top (right Hand) (Replaces: W11456625) |
|
Immediately | $ 31.90 |
