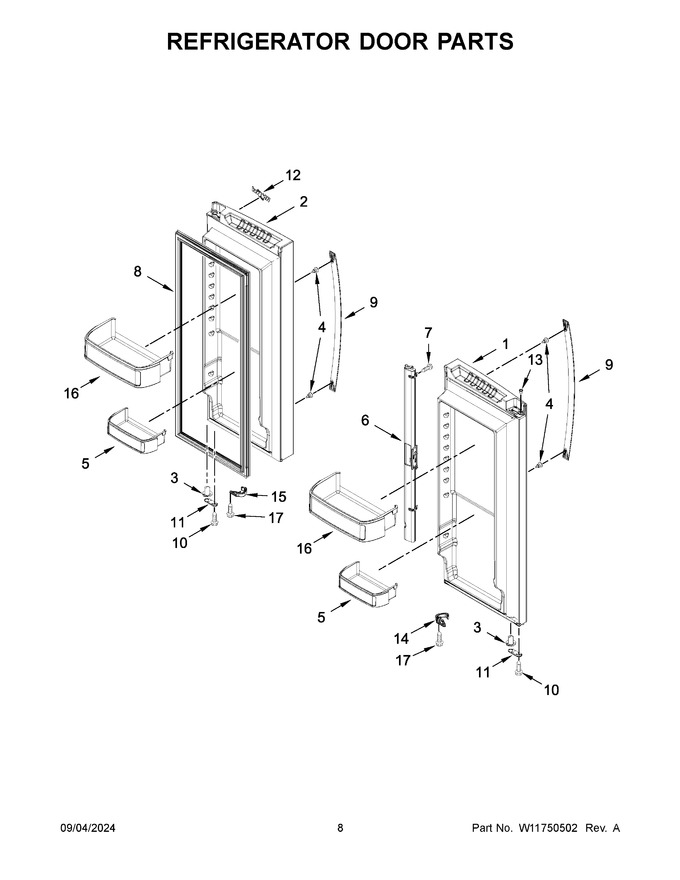

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11661564 | Door, Refrigerator Left Hand (black) (Replaces: W11622648) |
|
$ 1,073.87 | |||||
| 2 | 13107887BQ | Door, Refrigerator Right Hand (black) (Replaces: 13107887B) |
|
$ 1,157.96 | |||||
| 3 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 4 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 5 | W11749491 | Bucket, Medium (Replaces: W11697423) |
|
$ 52.86 | |||||
| 6 | WP12722803B | Mullion, Door (black) (Replaces: 12722803BN) |
|
Immediately | $ 206.80 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 212.57 | ||||
| 9 | W11123097 | Handle, Door (black) (Replaces: W11101974) |
|
$ 190.44 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 13 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 14 | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 15 | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 16 | W11749492 | Bucket, Gallon (Replaces: W11698393) |
|
Immediately | $ 66.00 | ||||
| 17 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 |
