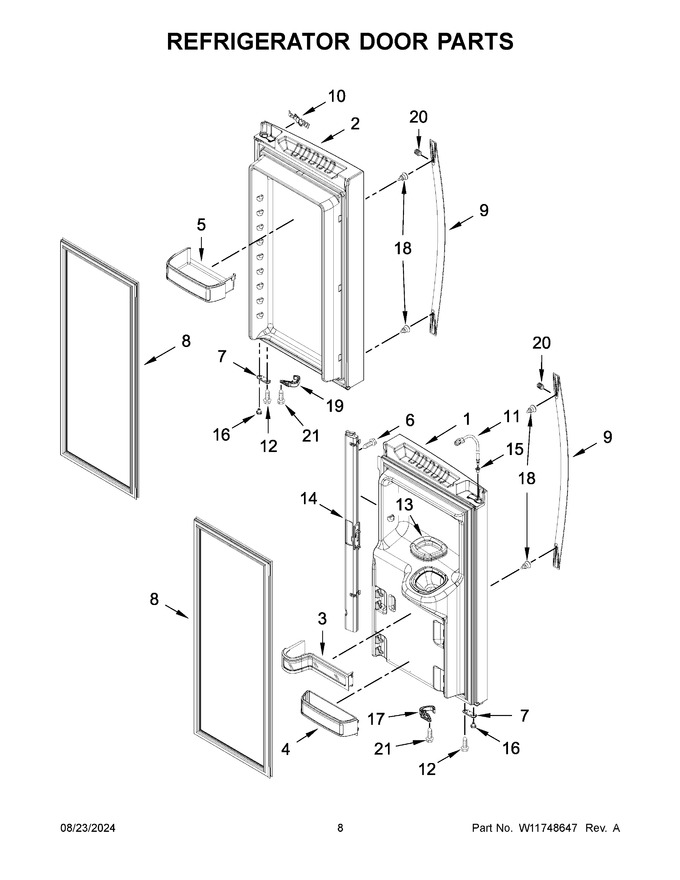

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10862411 | Door, Left (black) (Replaces: W10859351) |
|
$ 1,172.30 | |||||
| 2 | W10862410 | Door, Right (black) (Replaces: W10859350) |
|
$ 1,207.68 | |||||
| 3 | W11749487 | Bucket, Lh Upper (Replaces: W11698403) |
|
- | |||||
| 4 | W11749338 | Bucket, Small (Replaces: W11698402) |
|
$ 66.53 | |||||
| 5 | W11749336 | Bucket, Gallon (Replaces: W11698404) |
|
$ 67.33 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 8 | W10830055 | Gasket, Door (grey) |
|
Immediately | $ 229.10 | ||||
| 9 | W11123097 | Handle, Door (black) (Replaces: W11101974) |
|
$ 190.44 | |||||
| 10 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 11 | W11677733 | Waterline, Door (Replaces: W11431179) |
|
$ 85.79 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | 12722815B | Mullion, Door (black) |
|
$ 303.72 | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 17 | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 18 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 19 | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 20 | W10287055 | Screw, Set |
|
- | |||||
| 21 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 |
