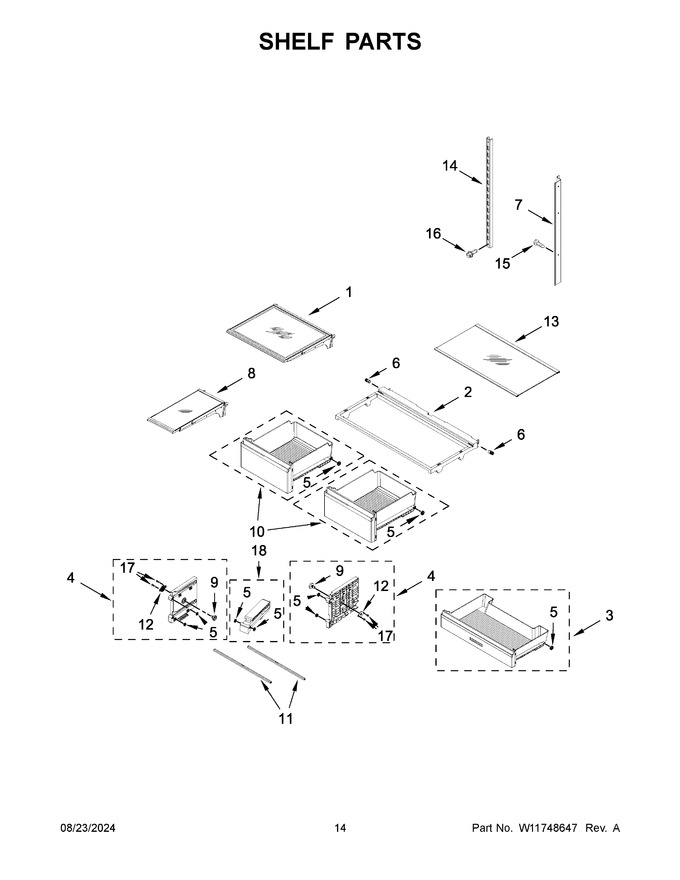

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11749333		Shelf, Stationary   (Replaces: W11697422)				$ 198.96
2	W11750336		Frame, Pan Cover Glass   (Replaces: W11705144)		Appelez-nous	-
3	W11751965		Drawer, Pantry   (Replaces: W11702374)				$ 157.97
4	W11749493		Endcap, Pantry (left Hand)   (Replaces: W11702403)		Appelez-nous	-
5	W11748380		Roller Assembly, Crisper   (Replaces: W11606482)		Appelez-nous	-
6	W11748383		Support, Crisper Frame   (Replaces: W11705308)		Appelez-nous	-
7	W10251966		Ladder, Side (left Hand)				$ 80.56
8	W11749335		Shelf, Mini   (Replaces: W11697425)		Appelez-nous	-
9	W10840922		Knob, Side Support		Appelez-nous	-
10	W11749296		Pan Assembly, Crisper   (Replaces: W11694348)			Immediately	$ 99.90
11	W11748466		Brace, Crisper Support   (Replaces: W11700717)		Appelez-nous	-
12	W10840918		Flange, Side Support				$ 93.47
13	W11749297		Glass, Pan Cover   (Replaces: W11694315)		Appelez-nous	-
14	W10273464		Ladder, Center			Immediately	$ 30.19
15	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
16	WP67006415		Screw   (Replaces: 12990512)				$ 8.38
17	W10847999		Screw   (Replaces: W10804977)				$ 13.47
18	W11749331		Assembly, Pan Center Support   (Replaces: W11702378)		Appelez-nous	-
4A	W11749494		Endcap, Pantry (right Hand)   (Replaces: W11702400)		Appelez-nous	-
7A	W10251965		Ladder, Side (right Hand)				$ 31.08
