SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts

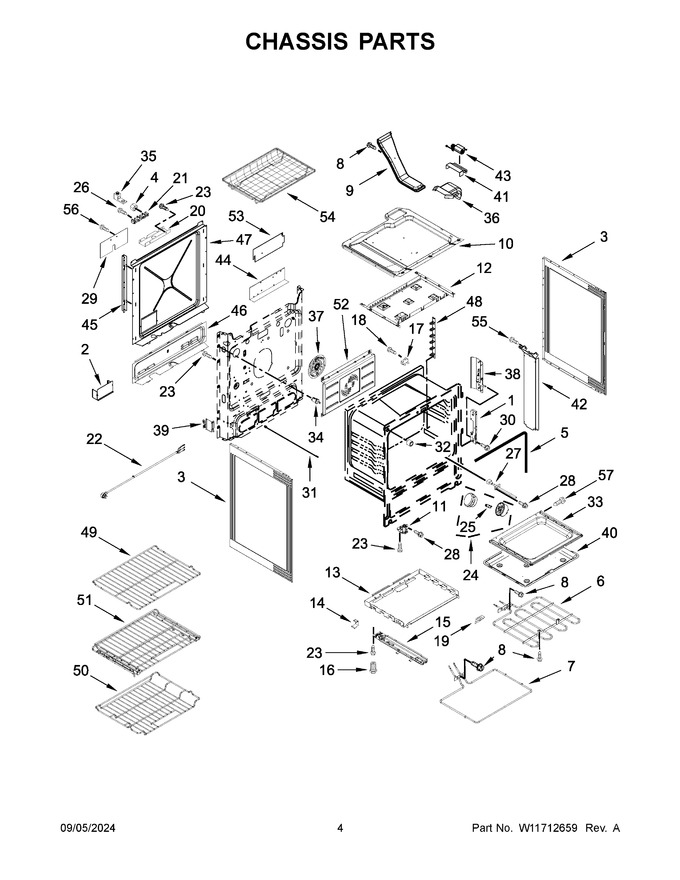

03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10634238 | Hinge, Receiver |
|
$ 77.26 | |||||
| 2 | W10162258 | Cover, Regulator |
|
$ 102.72 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| 4 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 5 | W11562931 | Gasket, Door (Replaces: W11491752) |
|
Immediately | $ 87.76 | ||||
| 6 | W11238400 | Element, Broil (Replaces: W10544952) |
|
Immediately | $ 118.18 | ||||
| 7 | W10779716 | Element, Bake (Replaces: W10774342) |
|
Immediately | $ 61.45 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 9 | W11122085 | Assembly, Flue |
|
$ 118.38 | |||||
| 10 | W10289168 | Box, Burner Si |
|
$ 204.90 | |||||
| 11 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | W11320442 | Gas Box Burner |
|
- | |||||
| 13 | W10541959 | Shield, Bake |
|
Immediately | $ 168.98 | ||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 19 | W10035900 | Support, Oven Bottom |
|
$ 14.36 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 30.13 | ||||
| 22 | W11226497 | Cord, Power (Replaces: W10624592) |
|
Immediately | $ 72.99 | ||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 24 | W11707255 | Light Assembly (Replaces: W11634772) |
|
Immediately | $ 40.75 | ||||
| 25 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 26 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 27 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 140.71 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 29 | W10655441 | Shield, Power Cord |
|
$ 144.36 | |||||
| 30 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 31 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 66.87 | ||||
| 32 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 33 | W10777210 | Bottom, Oven (Replaces: W10774446) |
|
Immediately | $ 164.22 | ||||
| 34 | W11620712 | Switch, Door (Replaces: W11511828) |
|
$ 46.31 | |||||
| 35 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | |||||
| 36 | W10162257 | Duct, Cooktop |
|
$ 28.76 | |||||
| 37 | W11414552 | Convection Assembly (Replaces: W11353932) |
|
Immediately | $ 205.64 | ||||
| 38 | W10605411 | Receiver, Slow Close Hinge |
|
$ 305.71 | |||||
| 39 | W10273002 | Bracket, Oven Support |
|
$ 76.34 | |||||
| 40 | W11379357 | Bake Pan |
|
Immediately | $ 82.86 | ||||
| 41 | W10162255 | Duct, Cover |
|
$ 29.17 | |||||
| 42 | W10162254 | Duct, Cooling |
|
$ 134.45 | |||||
| 43 | W11620737 | Cooling Fan (Replaces: W11467246) |
|
Immediately | $ 139.23 | ||||
| 44 | W10162260 | Shield, Heat |
|
$ 90.28 | |||||
| 45 | W10162241 | Channel, Rear |
|
$ 37.56 | |||||
| 46 | W10575377 | Cover, Wire |
|
$ 109.24 | |||||
| 47 | W11379354 | Cover, Back |
|
Immediately | $ 77.79 | ||||
| 48 | W10603482 | Rack, Ladder |
|
$ 447.25 | |||||
| 49 | W11699908 | Rack, Heavy Duty (Replaces: W10554005) |
|
$ 116.49 | |||||
| 50 | W11256463 | Rack, Maximum Capacity (Replaces: W10554006) |
|
Immediately | $ 132.50 | ||||
| 51 | W11225131 | Rack, Sliding (Replaces: W10911366) |
|
Immediately | $ 329.90 | ||||
| 52 | W10554262 | Baffle, Full Convection |
|
Immediately | $ 283.25 | ||||
| 53 | W10818358 | Shield, Wire |
|
- | |||||
| 54 | W11692811 | Basket, Airfry (Replaces: W11661815) |
|
Immediately | $ 117.69 | ||||
| 55 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 56 | W11684512 | Screw (Replaces: 3400080) |
|
$ 14.81 | |||||
| 57 | W10516115 | Screw |
|
$ 14.52 | |||||
| 15A | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| NI | 7111P01760 | Clamp, Wire |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W11688730 | Insulation, Bottom (Replaces: W10575374) |
|
Immediately | $ 79.98 | ||||
| NI | W11688815 | Insulation, Main Back (Replaces: W10655490) |
|
$ 79.94 | |||||
| NI | W10655489 | Insulation, Wrapper |
|
$ 192.11 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11688781 | Insulation, Heat Shield (Replaces: W10655442) |
|
$ 35.19 | |||||
| NI | 4820F01559 | Insulation, Strap |
|
- |
