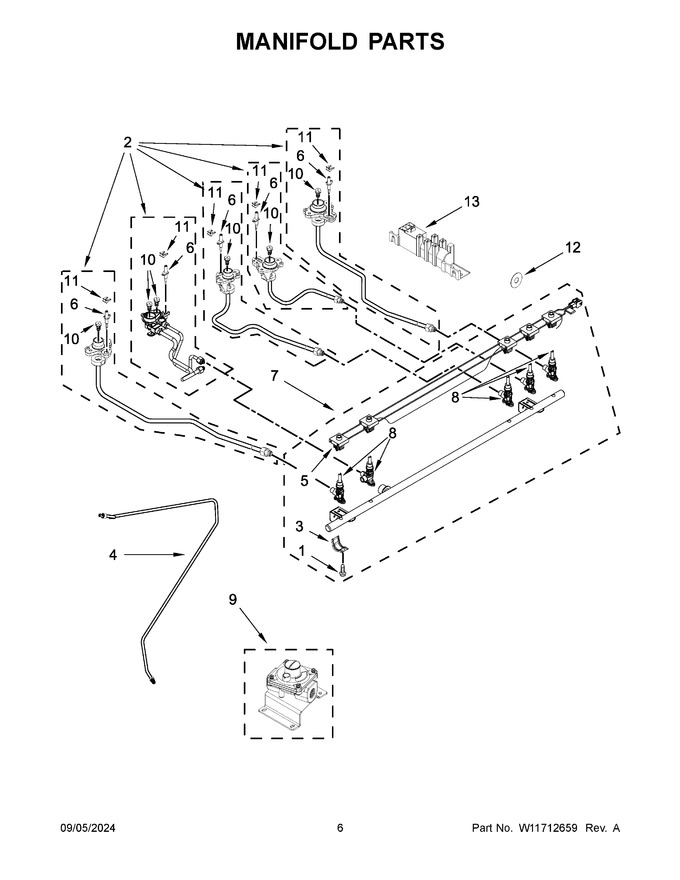

04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11577790 | Screw |
|
- | |||||
| 2 | W11186511 | Assembly, Orifice (19k) (left Front) |
|
Immediately | $ 120.00 | ||||
| 3 | W10949105 | Bracket, Saddle Valve |
|
$ 22.75 | |||||
| 4 | W10552945 | Tube, Supply |
|
$ 94.24 | |||||
| 5 | W11596366 | Harness, Spark Switch |
|
$ 101.77 | |||||
| 6 | W11675301 | Electrode, Burner (left Front) (Replaces: W10898387) |
|
Immediately | $ 35.31 | ||||
| 7 | W11602206 | Manifold Assembly |
|
Immediately | $ 319.10 | ||||
| 8 | W11593170 | Valve, Gas (dual) (left Front) |
|
$ 103.41 | |||||
| 9 | W10661850 | Assembly, Regulator And Bracket |
|
$ 131.25 | |||||
| 10 | ARI68EDB5F1759575D795C9CB1FF25DE44D | Orifice (not Serviced) |
|
- | |||||
| 11 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 12.65 | ||||
| 12 | W11768651 | Seal, Switch Shaft (Replaces: W11507167) |
|
$ 20.30 | |||||
| 13 | W11703692 | Spark Module (Replaces: W11350452) |
|
Immediately | $ 96.65 | ||||
| 2A | W11186508 | Orifice, Assembly (left Rear) |
|
$ 77.55 | |||||
| 2B | W11186524 | Assembly, Orifice (15k) (right Front) |
|
$ 82.16 | |||||
| 2C | W11186520 | Assembly, Orifice (9.2k) (right Rear) |
|
$ 82.49 | |||||
| 2D | W11186517 | Assembly, Orifice (8k) (center) |
|
$ 81.78 | |||||
| 6A | W11666003 | Electrode (left Rear) (Replaces: W10669525) |
|
$ 48.41 | |||||
| 6B | W11643126 | Electrode, Burner (right Front And Center) (Replaces: W10669524) |
|
Immediately | $ 38.01 | ||||
| 6C | W11661897 | Electrode, Burner (right Rear) (Replaces: W10669523) |
|
$ 48.36 | |||||
| 8A | W11620676 | Valve, Gas (left Rear) (Replaces: W11511819) |
|
$ 70.32 | |||||
| 8B | W11620675 | Valve, Gas (right Front) (Replaces: W11511818) |
|
Immediately | $ 70.32 | ||||
| 8C | W11620677 | Valve, Gas (right Rear And Center) (Replaces: W11511824) |
|
$ 70.32 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11436985 | Lp Conversion Kit (Replaces: W11397194) |
|
Immediately | $ 46.55 | ||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 |
