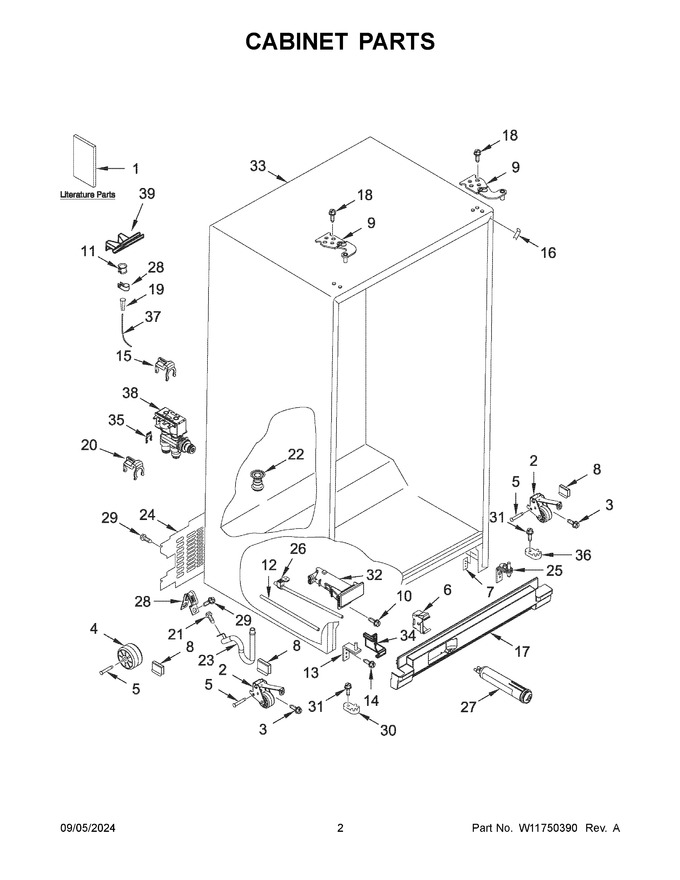

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11484052 | Use & Care Guide |
|
- | |||||
| 2 | WPW10304660 | Assembly, Roller (left Hand) (Replaces: W10304660) |
|
Immediately | $ 70.38 | ||||
| 3 | W11544561 | Screw (Replaces: 2152958) |
|
$ 14.05 | |||||
| 4 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 5 | W11594405 | Axle, Roller (Replaces: 2262072) |
|
Immediately | $ 18.21 | ||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 7 | W11036715 | Plate, Screw (refrigerator) |
|
- | |||||
| 8 | W11594405 | Clip, Roller (Replaces: W11087168) |
|
Immediately | $ 18.21 | ||||
| 9 | W11505710 | Hinge, Top (right Hand) (Replaces: W11167023) |
|
$ 64.30 | |||||
| 10 | WP489500 | Screw (Replaces: 489500) |
|
$ 7.78 | |||||
| 11 | W10861184 | Clamp, Tube (Replaces: W10329003) |
|
$ 62.76 | |||||
| 12 | W11162036 | Tube, Filter Outlet (Replaces: W10900447) |
|
$ 114.71 | |||||
| 13 | W11687636 | Assembly, Bottom Hinge (freezer) (Replaces: W11093938) |
|
$ 69.42 | |||||
| 14 | WP489497 | Screw (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 15 | W11091654 | Connector, Double Lock |
|
Immediately | $ 21.15 | ||||
| 16 | W11219642 | Filler, Wrapper (grey) |
|
Immediately | $ 12.24 | ||||
| 17 | W11282548 | Grille (grey) (Replaces: W11226345) |
|
$ 121.76 | |||||
| 18 | WPW10308489 | Screw (grey) (Replaces: W10308489) |
|
Immediately | $ 7.79 | ||||
| 19 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.84 | |||||
| 20 | W11252188 | Double Lock Ring |
|
$ 19.86 | |||||
| 21 | WP489464 | Screw (Replaces: 489464A) |
|
Immediately | $ 7.83 | ||||
| 22 | W11566763 | Fitting, Drain (Replaces: W11424515) |
|
Immediately | $ 50.90 | ||||
| 23 | W11512417 | Extension, Drain Fitting (Replaces: W11404685) |
|
$ 34.79 | |||||
| 24 | W11613262 | Cover, Unit |
|
$ 52.14 | |||||
| 25 | W11399415 | Assembly, Bottom Hinge (refrigerator - Also Includes Door Cam) (Replaces: W11097327) |
|
$ 69.79 | |||||
| 26 | W11162040 | Tube, Filter Inlet (Replaces: W10900449) |
|
$ 115.43 | |||||
| 27 | EDR1RXD1B | Filter, Water (Replaces: W10735398) |
|
Immediately | $ 49.99 | ||||
| 28 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 29 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 30 | W11679635 | Closer, Door (freezer) (Replaces: W11095731) |
|
Immediately | $ 13.08 | ||||
| 31 | WP489483 | Screw (Replaces: W10142234) |
|
$ 10.87 | |||||
| 32 | W11162042 | Housing, Water Filter (grey) (Replaces: W11036338) |
|
Immediately | $ 149.82 | ||||
| 33 | ARI89959A0406B9B609EB9764890B107614 | Cabinet (not A Servicable Part) |
|
- | |||||
| 34 | W10897565 | Assembly, Bracket |
|
$ 68.47 | |||||
| 35 | W11676611 | Locking Ring (1/4) (Replaces: W11175632) |
|
$ 14.18 | |||||
| 36 | W11398787 | Closer, Lower Cam Door (refrigerator) (Replaces: W10905504) |
|
$ 13.91 | |||||
| 37 | W10823511 | Tube, Water (Replaces: W10357069) |
|
Immediately | $ 32.41 | ||||
| 38 | W11645245 | Assembly, Filter Valve (Replaces: W11563296) |
|
Immediately | $ 57.49 | ||||
| 39 | W11645360 | Chute, Water (Replaces: W11605929) |
|
$ 22.01 | |||||
| 1A | W11647251 | Energy Guide |
|
- | |||||
| 2A | WPW10304659 | Assembly, Roller (right Hand) (Replaces: W10304659) |
|
Immediately | $ 68.52 | ||||
| 35A | W11678575 | Locking Ring (5/16) (Replaces: W11175631) |
|
$ 14.19 | |||||
| 7A | W10904380 | Plate, Screw (freezer) |
|
$ 24.72 | |||||
| 9A | W11505709 | Hinge, Top (left Hand) (Replaces: W11167022) |
|
$ 64.30 |
