Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI0820F7799426DB23CC858392159B72FE Housing, Dispenser (not Serviced) Appelez-nous -
2 W11203289 Assembly, User Interface (includes Light Feature) (black)   (Replaces: W10898320) Appelez-nous -
3 W11163765 Assembly, Water Fitting   (Replaces: W10898317) In-Stock Immediately $ 158.15

4 W11678839 Assembly, Separator (neptune Frost)   (Replaces: W11604218) Special Order $ 169.88

5 WP8281163 Screw (stainless)   (Replaces: 8281163) In-Stock Immediately $ 10.19

6 W11397167 Retainer, Separator Hose   (Replaces: W11039857) In-Stock Immediately $ 22.23

7 W11311799 Cover, Dispenser Front (black (left Hand))   (Replaces: W11183317) Special Order $ 97.83

8 W10898319 Harness, Wire Special Order $ 143.66

7A W11311800 Cover, Dispenser Front (black (right Hand))   (Replaces: W11183313) In-Stock Immediately $ 101.25


    View Diagram in Separate Window     Print Icon   Print Part List

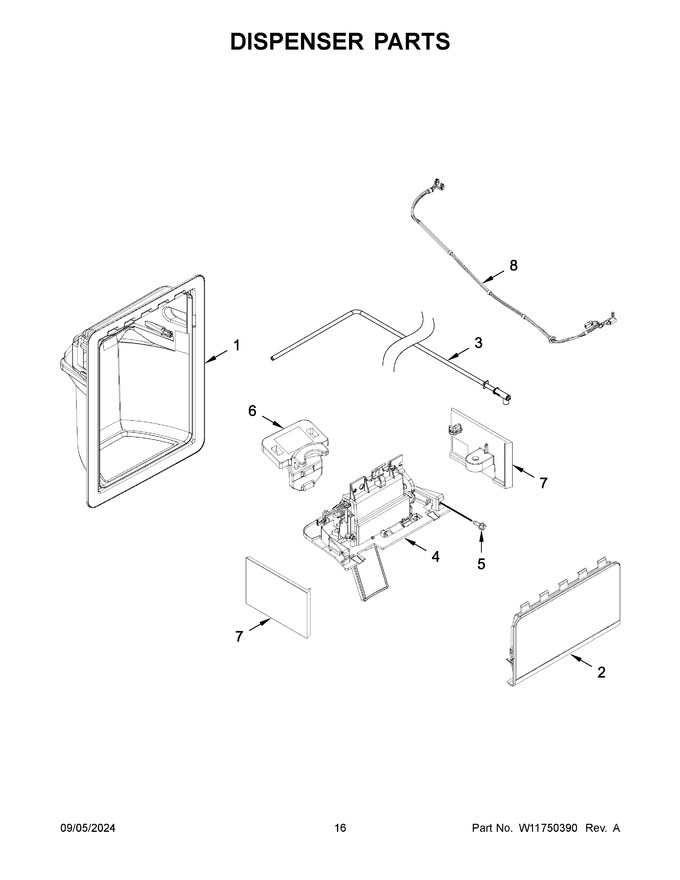

Diagram for WRS311SDHM12
