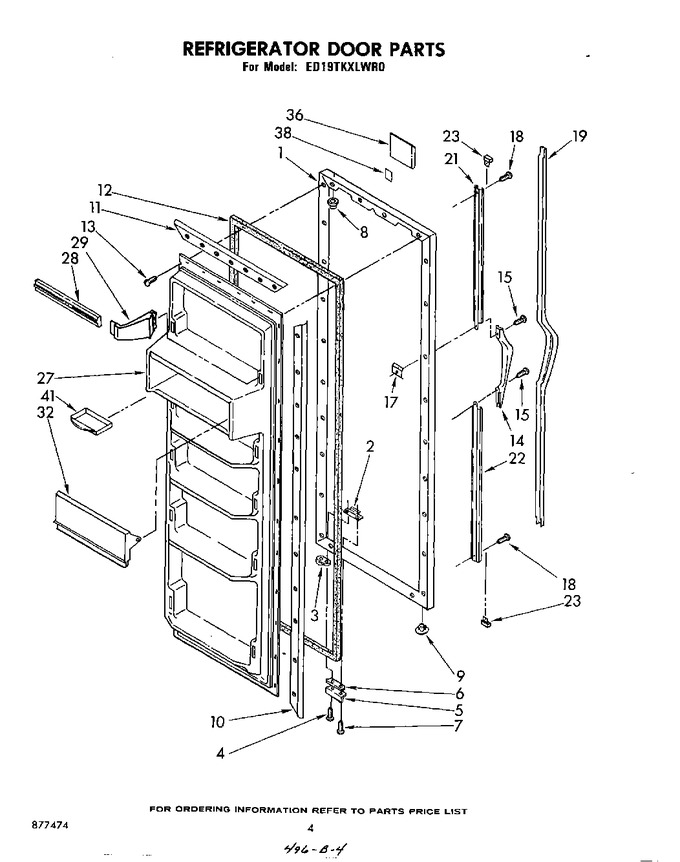

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	936633		Refrigerator, Door Panel (coffee)		Appelez-nous	-
1	936634		Refrigerator, Door Panel (golden Harvest)		Appelez-nous	-
1	936635		Refrigerator, Door Panel (avocado)		Appelez-nous	-
1	936636		Refrigerator, Door Panel (almond)		Appelez-nous	-
1	936632		Refrigerator, Door Panel (white)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door, Cam Upper   (Replaces: 986758)			Immediately	$ 29.74
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
5	988420		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	509929		Cap, Hinge		Appelez-nous	-
9	989197		Hole Plug (almond)		Appelez-nous	-
9	534927		Hole Plug (white)		Appelez-nous	-
9	989878		Hole, Plug (coffee)		Appelez-nous	-
9	989879		Hole Plug (golden Harvest)		Appelez-nous	-
9	989880		Hole, Plug (avocado)		Appelez-nous	-
10	836120		Retainer, Side		Appelez-nous	-
11	836121		Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 939565)				$ 269.26
13	WP489069		Screw, No.7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
13	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
14	987009		Handle		Appelez-nous	-
15	W11624204		Screw, 8 X 1/2 (2)   (Replaces: 486194)				$ 14.72
17	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
18	488928		Screw, 10-32 X 5/8		Appelez-nous	-
19	848330		Insert, Handle		Appelez-nous	-
21	987008		Insert Retainer (top)		Appelez-nous	-
22	987010		Insert Retainer (bottom)		Appelez-nous	-
23	987006		End Cap		Appelez-nous	-
27	981428		Insert Door, Panel		Appelez-nous	-
28	848683		Trim, Door Shelf		Appelez-nous	-
29	WP849996		Retainer, Door Trim   (Replaces: 849996)				$ 7.95
32	985459		Door, Compartment		Appelez-nous	-
36	945117		Nameplate		Appelez-nous	-
38	991259		Tape Strip		Appelez-nous	-
41	520747		Tray, Butter		Appelez-nous	-
