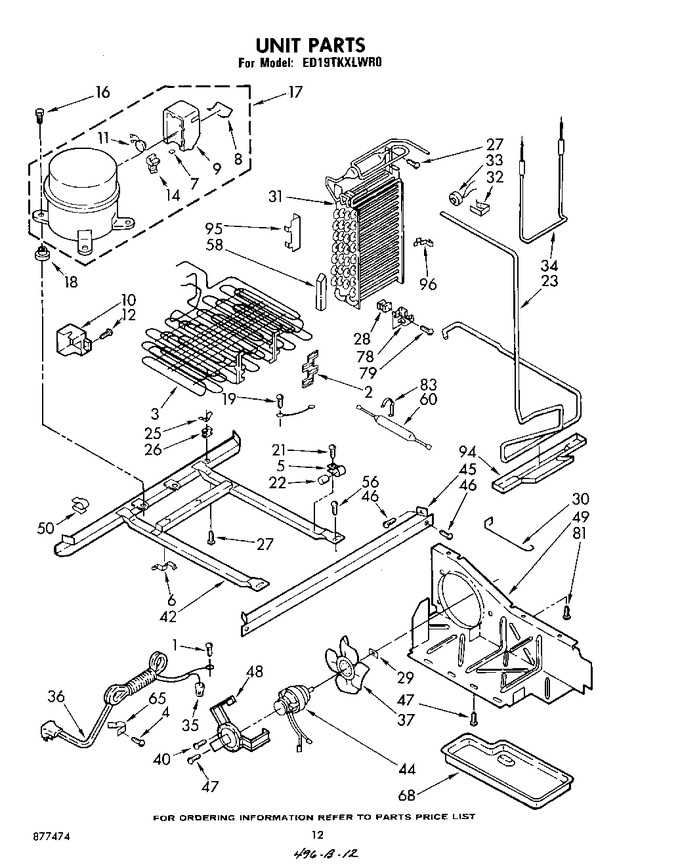

07 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 488474 | Screw, Ground |
|
- | |||||
| 2 | 987210 | Spacer Condenser (4) |
|
- | |||||
| 3 | 481846 | Condenser & Precooler |
|
- | |||||
| 4 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 5 | 510716 | Clamp (2) |
|
- | |||||
| 6 | 548744 | Clip (2) |
|
- | |||||
| 7 | 547272 | Bumper |
|
- | |||||
| 8 | 531318 | Strap, Cover |
|
- | |||||
| 9 | 549945 | Cover |
|
- | |||||
| 10 | 549947 | Box, Junction |
|
- | |||||
| 11 | 549041 | Overload |
|
- | |||||
| 12 | WP488729 | Screw, 8 X 1/2 (Replaces: 486993) |
|
Immediately | $ 8.28 | ||||
| 14 | 989661 | Relay |
|
- | |||||
| 16 | 488400 | Screw, 1/4-28 X 1`` (4) |
|
- | |||||
| 17 | 876638 | Compressor Kit (includes Items 7, 8, 9, 11 & 14) |
|
- | |||||
| 18 | 547283 | Grommet (4) |
|
- | |||||
| 19 | 303776 | Screw (Replaces: 488879) |
|
- | |||||
| 21 | WPW10141625 | Screw, 8-32 X 1/2 (2) (Replaces: 488197) |
|
$ 22.22 | |||||
| 22 | 510769 | Dampener (2) |
|
- | |||||
| 23 | 941662 | Exchanger, Heat |
|
- | |||||
| 25 | 548738 | Clamp (4) |
|
- | |||||
| 26 | 548737 | Grommet (4) |
|
- | |||||
| 27 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 28 | 944454 | Grommet |
|
- | |||||
| 29 | WP486692 | Nut, Speed (Replaces: 486692) |
|
$ 8.43 | |||||
| 30 | 850156 | Guard, Fan |
|
- | |||||
| 31 | 851439 | Evaporator |
|
- | |||||
| 32 | 513584 | Clamp |
|
- | |||||
| 33 | WP4387489 | Defrost, Bimetal (Replaces: 934424) |
|
$ 108.99 | |||||
| 34 | WP549433 | Heater, Defrost (Replaces: 934445) |
|
$ 175.73 | |||||
| 35 | 227991 | Wire Connector |
|
- | |||||
| 36 | 850626 | Cord, Service |
|
- | |||||
| 37 | 851732 | Blade, Fan (alternate) |
|
- | |||||
| 37 | 989524 | Blade, Fan |
|
- | |||||
| 40 | 488868 | Screw, 8-36 X 3/8 (3) |
|
- | |||||
| 42 | 548654 | Frame |
|
- | |||||
| 44 | 833697 | Motor, Fan (Replaces: 938164) |
|
Immediately | $ 88.15 | ||||
| 45 | 548662 | Rail, Front |
|
- | |||||
| 46 | 489340 | Screw, 5/16-18 X 5/8 (4) (Replaces: 488683) |
|
- | |||||
| 47 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 48 | 548695 | Bracket, Fan Motor |
|
- | |||||
| 49 | 850764 | Baffle, Air |
|
- | |||||
| 50 | 548745 | Clip, Wire (2) |
|
- | |||||
| 56 | 488454 | Screw, 1/4-28 X 1/2 (2) |
|
- | |||||
| 58 | 652985 | Baffle, Air Evaporator (2) |
|
- | |||||
| 60 | W10843121 | Drier (Replaces: 978246) |
|
Immediately | $ 57.13 | ||||
| 65 | 549193 | Clamp |
|
$ 14.06 | |||||
| 68 | 842041 | Tray, Evaporating |
|
$ 64.92 | |||||
| 78 | 842436 | Support, Evaporator |
|
- | |||||
| 79 | WP681414 | Screw, 10-12 X 3/8 (Replaces: 489049) |
|
Immediately | $ 8.47 | ||||
| 81 | 489050 | Screw, 8-15 X 3/8 |
|
$ 692.56 | |||||
| 83 | 548508 | Clamp, Drier |
|
- | |||||
| 94 | 989269 | Pan, Drip |
|
- | |||||
| 95 | 549435 | Shield, Heat (2) |
|
- | |||||
| 96 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 96 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 96 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 96 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 96 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 96 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 96 | 549419 | Clamp, Heater (4) |
|
- |
