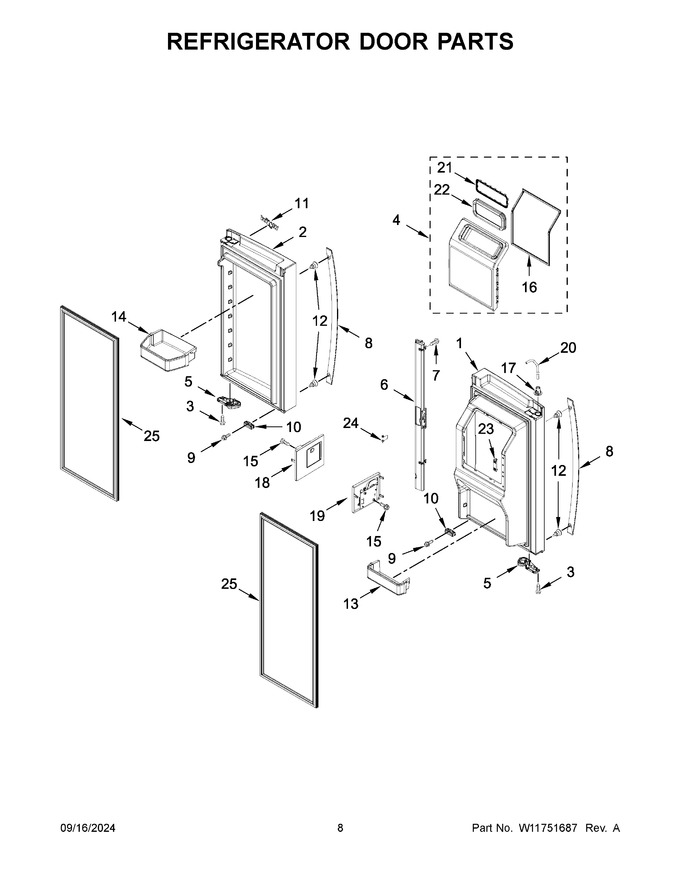

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11518696 | Door, Refrigerator Left Hand (includes Door Gasket) (stainless) (Replaces: W11405229) |
|
- | |||||
| 2 | W11435357 | Door, Refrigerator Right Hand (stainless) (Replaces: W11419958) |
|
Immediately | $ 1,145.78 | ||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W11261139 | Door, Ice |
|
- | |||||
| 5 | W10904595 | Latch, Door (left Hand) (Replaces: W10712952) |
|
$ 18.04 | |||||
| 6 | W11025614 | Mullion, Door (grey) (Replaces: W10698204) |
|
$ 144.29 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11045129 | Handle, Door (stainless) (Replaces: W11115757) |
|
Immediately | $ 183.31 | ||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 | ||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 13 | W10846358 | Trivet, 2 Liter (Replaces: W10533404) |
|
$ 105.00 | |||||
| 14 | WPW10674770 | Bucket, Gallon (Replaces: W10674770) |
|
$ 281.85 | |||||
| 15 | 2006254 | Screw (Replaces: 12993001) |
|
$ 13.79 | |||||
| 16 | W11624997 | Gasket, Ice Compartment Door (Replaces: W10347085) |
|
$ 69.41 | |||||
| 17 | W11315302 | Clip, Tube |
|
- | |||||
| 18 | W11751996 | Board And Cover Assembly, Emitter (Replaces: W11554030) |
|
$ 328.97 | |||||
| 19 | W11751997 | Board And Cover Assembly, Receiver (Replaces: W11554032) |
|
$ 328.97 | |||||
| 20 | WPW10499015 | Tube, Water (Replaces: W10499015) |
|
$ 128.77 | |||||
| 21 | WPW10400825 | Retainer, Ice Chute (Replaces: W10400825) |
|
$ 32.32 | |||||
| 22 | W11504379 | Gasket, Ice Chute (Replaces: W11261136) |
|
- | |||||
| 23 | W11684620 | Vent, Thermistor (Replaces: W10646855) |
|
Immediately | $ 23.16 | ||||
| 24 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 25 | W10846057 | Gasket, Door (grey) (Replaces: W10873941) |
|
Immediately | $ 353.06 | ||||
| 5A | W11212164 | Latch, Door (right Hand) (Replaces: W10712953) |
|
$ 17.59 |
