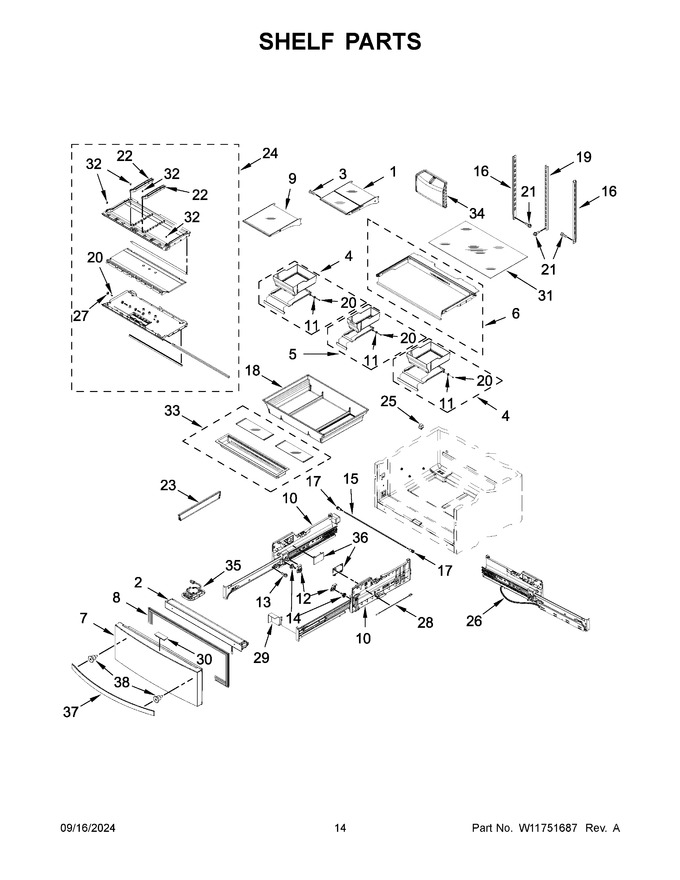

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10709175 | Assembly, Tuck Shelf (Replaces: W10709175) |
|
$ 327.75 | |||||
| 2 | W11483111 | Assembly, Secondary Mullion (Replaces: W11374494) |
|
- | |||||
| 3 | W10421495 | Screw |
|
$ 19.09 | |||||
| 4 | W10839369 | Crisper, Medium (Replaces: W11507279) |
|
$ 199.20 | |||||
| 5 | W11507281 | Crisper, Small |
|
- | |||||
| 6 | W11127833 | Assembly, Crisper Cover (includes Front Support) (Replaces: W11507302) |
|
$ 231.46 | |||||
| 7 | W11435361 | Door, Pantry (includes Door Gasket) (stainless) (Replaces: W11419982) |
|
$ 1,014.43 | |||||
| 8 | W10622446 | Gasket, Pantry (grey) (Replaces: W10518365) |
|
$ 355.41 | |||||
| 9 | WPW10709163 | Assembly, Shelf (Replaces: W10709163) |
|
$ 363.26 | |||||
| 10 | W11215629 | Adapter, Pantry (left Hand) |
|
Immediately | $ 193.62 | ||||
| 11 | W10788795 | Roller (Replaces: W10530295) |
|
$ 20.60 | |||||
| 12 | W10284709 | Cover, Gear (left Hand) |
|
$ 73.89 | |||||
| 13 | 12991702 | Screw |
|
$ 14.93 | |||||
| 14 | W10277360 | Gear, Spur |
|
$ 31.85 | |||||
| 15 | W10802341 | Shaft, Rack |
|
- | |||||
| 16 | W11690684 | Ladder, Side (Replaces: W10372170) |
|
$ 50.62 | |||||
| 17 | WPW10277361 | Collar, Gear (Replaces: W10277361) |
|
$ 12.09 | |||||
| 18 | WPW10530656 | Pan, Pantry (Replaces: W10530656) |
|
$ 240.88 | |||||
| 19 | WPW10248516 | Ladder, Center (Replaces: W10248516) |
|
$ 35.89 | |||||
| 20 | 67006692 | Screw (Replaces: 12991401) |
|
$ 10.79 | |||||
| 21 | W10423560 | Screw |
|
- | |||||
| 22 | W10530296 | Guide, Crisper |
|
- | |||||
| 23 | W11763409 | Divider, Large Pantry (Replaces: W10772797) |
|
$ 58.78 | |||||
| 24 | W10782690 | Assembly, Floor (includes Heater) |
|
$ 264.95 | |||||
| 25 | W11384469 | Switch, Rocker (Replaces: W10847853) |
|
Immediately | $ 39.09 | ||||
| 26 | W11170612 | Harness, Side Adapter (Replaces: W10512203) |
|
Immediately | $ 82.35 | ||||
| 27 | W10788795 | Roller (Replaces: W10530295) |
|
$ 20.60 | |||||
| 28 | W11168403 | Thermistor (Replaces: W10549991) |
|
$ 86.14 | |||||
| 29 | W10518378 | Cover, Connector |
|
- | |||||
| 30 | WPW10503833 | Assembly, User Interface (stainless) (Replaces: W10503833) |
|
$ 458.15 | |||||
| 31 | W11038526 | Glass, Crisper (Replaces: W10893770) |
|
$ 263.10 | |||||
| 32 | 12702901 | Pad, Glide |
|
- | |||||
| 33 | W10858273 | Bin, Secondary Mullion (Replaces: W10780178) |
|
$ 253.20 | |||||
| 34 | W11462816 | Assembly, Produce Preserver (Replaces: W10826105) |
|
Immediately | $ 17.15 | ||||
| 35 | W11483116 | Assembly, Led Light Module (Replaces: W11228040) |
|
Immediately | $ 21.81 | ||||
| 36 | W10518036 | Cover, Side Adapter |
|
$ 22.75 | |||||
| 37 | W11045125 | Handle, Door (stainless) (Replaces: W11115761) |
|
Immediately | $ 190.44 | ||||
| 38 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 10A | W11093718 | Adapter, Pantry (right Hand) |
|
- | |||||
| 12A | W10294414 | Cover, Gear (right Hand) |
|
$ 83.48 |
