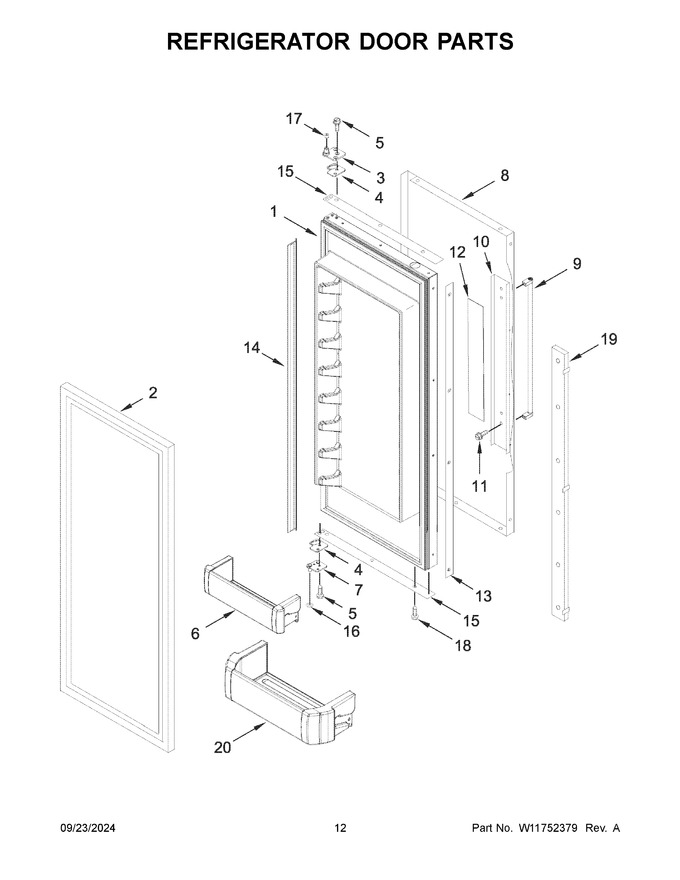

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10651466		Door, Refrigerator (left Hand)		Appelez-nous	-
2	W10871887		Gasket, Door (grey)   (Replaces: W10629728)				$ 321.38
3	W11673500		Hinge Assembly, Top   (Replaces: W10485980)			Immediately	$ 108.07
4	W11673500		Spacer, Door Hinge Bottom   (Replaces: 2316804)			Immediately	$ 108.07
5	W11474472		Screw   (Replaces: W10162602)			Immediately	$ 8.63
6	W10529449		Bin, Door				$ 274.07
7	W10273369		Assembly, Bottom Hinge (left Hand)				$ 41.21
8	W11797628		Skin, Door (stainless)   (Replaces: W10541584)		Appelez-nous	-
9	W10783284		Handle, Door (stainless)   (Replaces: W10541592)				$ 216.71
10	W10127710		Plate, Handle Door			Immediately	$ 25.94
11	WP308544		Screw   (Replaces: 308544)			Immediately	$ 8.30
12	ARI765E3BCEDCBF088335076E36E706F61A		Filler (not Serviced-included With Skin)		Appelez-nous	-
13	W10600736		Spacer, Door Edge (handle Side)				$ 303.66
14	W10600734		Spacer, Door Edge (handle Side)				$ 297.16
15	W10535347		Spacer, Door (top And Bottom)				$ 165.29
16	WP2006346		Washer, Extension Arm   (Replaces: 2006346)			Immediately	$ 11.76
17	W11500952		Bushing, Top Hinge   (Replaces: W10484913)			Immediately	$ 34.74
18	W11748041		Screw (stainless)   (Replaces: W11672062)		Appelez-nous	-
19	W11590867		Assembly, Mullion				$ 152.85
20	W10578289		Bin, Gallon Door				$ 303.47
1A	W11797617		Door, Refrigerator (right Hand)   (Replaces: W10651470)		Appelez-nous	-
7A	W10273367		Assembly, Bottom Hinge (right Hand)				$ 41.27
