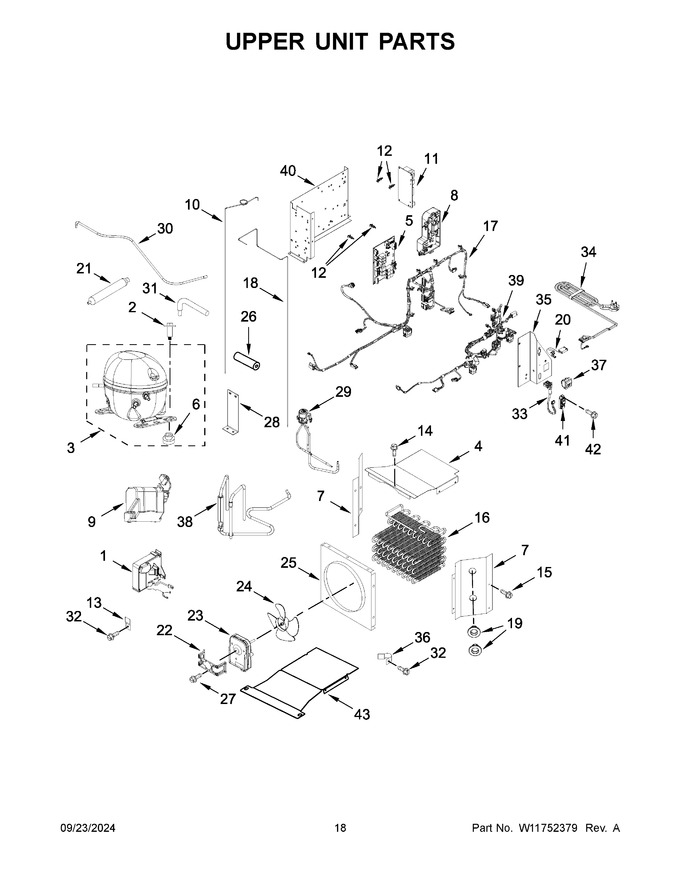

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11655239 | Assembly, Inverter Box (Replaces: W11611311) |
|
$ 389.74 | |||||
| 2 | W11661574 | Screw (Replaces: 489473) |
|
$ 14.29 | |||||
| 3 | W11557671 | Compressor (also Order The Following Lokring⢠Parts) (Replaces: W11332037) |
|
Immediately | $ 728.13 | ||||
| 4 | W11756951 | Cover, Condenser Support (Replaces: W11695783) |
|
- | |||||
| 5 | WPW10739408 | Control, Electronic (Replaces: W10739408) |
|
Immediately | $ 268.35 | ||||
| 6 | W11661108 | Mounting Grommet, Compressor (Replaces: 2183042) |
|
$ 15.21 | |||||
| 7 | W11756945 | Support, Condenser (left Hand) (Replaces: W11695311) |
|
- | |||||
| 8 | W11368839 | Assembly, Led Power Supply And Driver Enclosure (Replaces: W10640411) |
|
Immediately | $ 365.73 | ||||
| 9 | W11247667 | Cover Assembly, Compressor (Replaces: W11235263) |
|
$ 115.24 | |||||
| 10 | W11517121 | Tube, Discharge/drain Pan Heater |
|
- | |||||
| 11 | WPW10624574 | Supply, Power (Replaces: W10624574) |
|
Immediately | $ 231.58 | ||||
| 12 | WP2203075 | Spacer (Replaces: 2203075) |
|
Immediately | $ 18.81 | ||||
| 13 | 2256328 | Bracket, Inverter Mounting |
|
- | |||||
| 14 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 15 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 8.40 | ||||
| 16 | W11693236 | Condenser (also Order The Following Lokring⢠Parts) (Replaces: W11601407) |
|
$ 165.30 | |||||
| 17 | W11442534 | Assembly, Hv Wire |
|
Immediately | $ 140.72 | ||||
| 18 | W11693239 | Tube, Heat Loop (Replaces: W11602253) |
|
- | |||||
| 19 | W10587113 | Mounting Grommet, Condenser |
|
- | |||||
| 20 | 2310195 | Assembly, Jumper Wire (power Switch To Power Cord) |
|
$ 123.20 | |||||
| 21 | W11109499 | Drier (service Drier Without Dye) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 22 | W10414681 | Bracket, Fan Motor |
|
$ 79.53 | |||||
| 23 | W11127829 | Motor, Condenser Fan (Replaces: W10909387) |
|
Immediately | $ 185.05 | ||||
| 24 | WPW10139483 | Blade, Condenser Fan (Replaces: W10139483) |
|
$ 99.82 | |||||
| 25 | W11735286 | Orifice, Condenser Fan (Replaces: W11723572) |
|
- | |||||
| 26 | W11751592 | Sleeve (Replaces: W10303521) |
|
Immediately | $ 21.32 | ||||
| 27 | WP8533993 | Screw (Replaces: W10146359) |
|
$ 11.21 | |||||
| 28 | W11233715 | Bracket, 3-way Valve |
|
- | |||||
| 29 | W11647768 | Assembly, 3-way Valve (Replaces: W11506489) |
|
Immediately | $ 110.53 | ||||
| 30 | W11693238 | Tube, Condenser/drier (Replaces: W11602254) |
|
$ 59.00 | |||||
| 31 | W11482820 | Tube, Process |
|
Immediately | $ 36.53 | ||||
| 32 | W11624204 | Screw (Replaces: 486194) |
|
$ 14.72 | |||||
| 33 | W11534165 | Assembly, Humidity Sensor Wire |
|
- | |||||
| 34 | 2310196 | Cord, Power |
|
Immediately | $ 88.52 | ||||
| 35 | W11435371 | Bracket, Control Assembly |
|
- | |||||
| 36 | W11234470 | Clamp, Power Cord (Replaces: W10303628) |
|
$ 22.12 | |||||
| 37 | W11623128 | Switch, Power Disconnect (Replaces: W11311927) |
|
$ 125.83 | |||||
| 38 | W11511844 | Assembly, Suction Tube |
|
$ 73.48 | |||||
| 39 | W11442533 | Assembly, Lv Wire |
|
$ 140.93 | |||||
| 40 | W10550831 | Housing, Control Board Mounting |
|
- | |||||
| 41 | W10625259 | Sensor, Humidity (Replaces: W10635338) |
|
$ 190.79 | |||||
| 42 | W10068580 | Screw |
|
- | |||||
| 43 | W11756954 | Bracket, Condenser Bottom (Replaces: W11695784) |
|
- | |||||
| 7A | W11756946 | Support, Condenser (right Hand) (Replaces: W11695312) |
|
- | |||||
| NI | ARI5ABD8795F1D1E157F1B64FDCC10396D1 | Refrigerant Charge 56.7 Grams (r600a) |
|
- |
