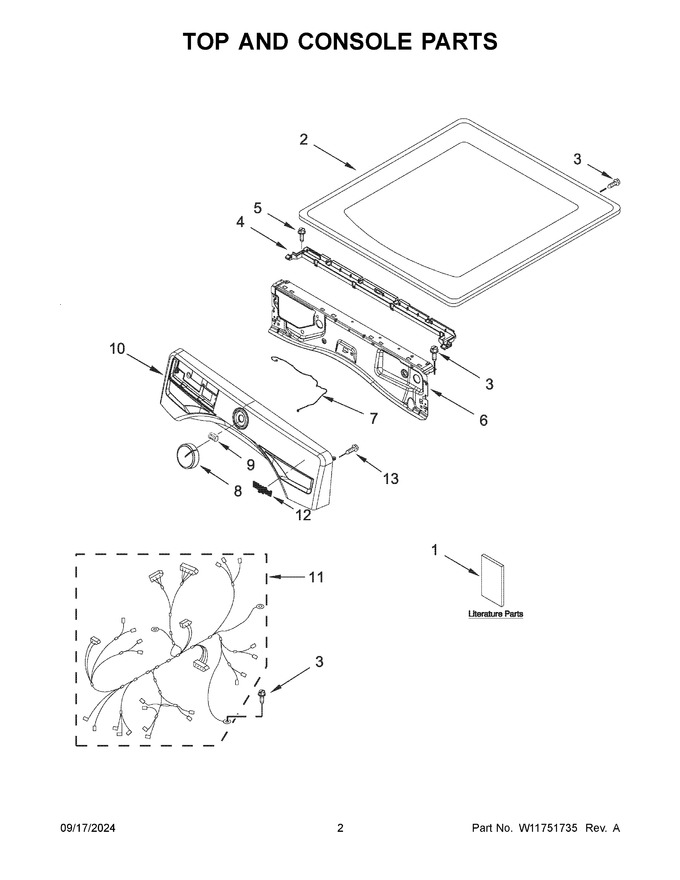

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11685647		Owners Manual		Appelez-nous	-
2	WPW10208383		Top (white)   (Replaces: W10208383)				$ 308.50
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
4	W11310027		Channel, Water   (Replaces: W11255768)				$ 22.61
5	W11686675		Screw   (Replaces: 12990702)				$ 13.59
6	W11480682		Bracket, Console				$ 75.41
7	W11752166		Harness, Acu To Hmi   (Replaces: W11719384)		Appelez-nous	-
8	W11746647		Assembly, Knob   (Replaces: W11709754)				$ 43.11
9	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
10	W11752183		Console   (Replaces: W11707401)			Immediately	$ 568.17
11	W11157861		Harness, Main				$ 243.21
12	W11223753		Badge   (Replaces: W10884773)			Immediately	$ 83.10
13	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.86
1A	W11708031		Tech Sheet		Appelez-nous	-
1B	W11708007		Quick Start Guide		Appelez-nous	-
