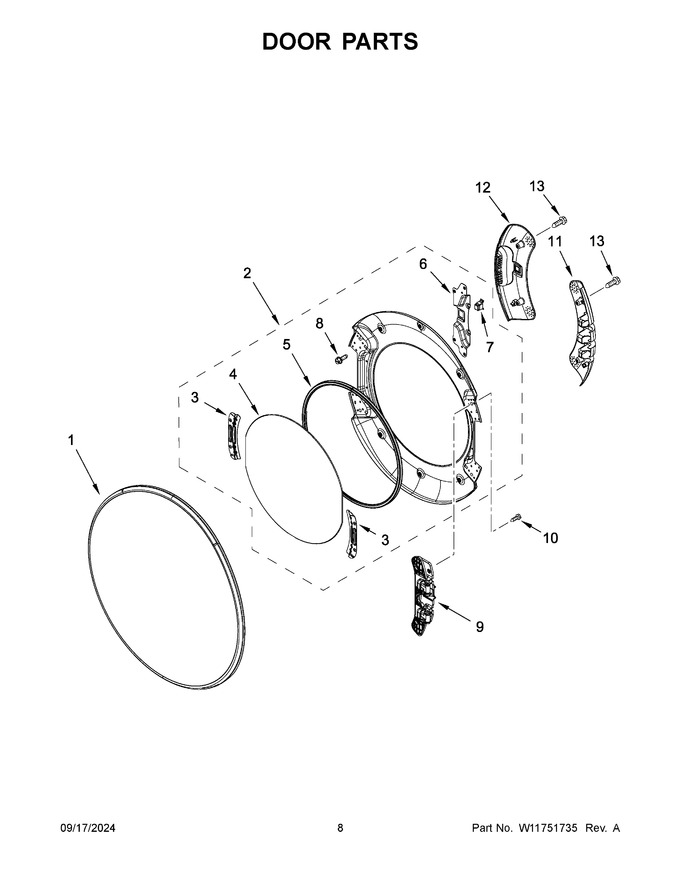

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11815415 | Assembly, Outer Door (chrome) (Replaces: W11711433) |
|
$ 472.54 | |||||
| 2 | W11701947 | Assembly, Inner Door (Replaces: W11606588) |
|
$ 266.30 | |||||
| 3 | W11310037 | Bracket, Glass (Replaces: W11100789) |
|
$ 20.48 | |||||
| 4 | W11310036 | Glass, Door (Replaces: W10891207) |
|
$ 181.59 | |||||
| 5 | W11310035 | Seal, Glass (Replaces: W11183899) |
|
Immediately | $ 86.79 | ||||
| 6 | W11310039 | Bracket, Door Catch (Replaces: W11050690) |
|
$ 23.27 | |||||
| 7 | W11240283 | Assembly, Spring Catch (Replaces: W10208401) |
|
Immediately | $ 28.04 | ||||
| 8 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.03 | |||||
| 9 | W11742046 | Hinge Assembly (Replaces: W11114011) |
|
Immediately | $ 154.58 | ||||
| 10 | 8540479 | Screw, Grounding |
|
$ 8.78 | |||||
| 11 | W11701948 | Cover, Hinge (Replaces: W11607789) |
|
- | |||||
| 12 | W11701949 | Cover, Handle (Replaces: W11607784) |
|
Immediately | $ 51.73 | ||||
| 13 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.19 |
