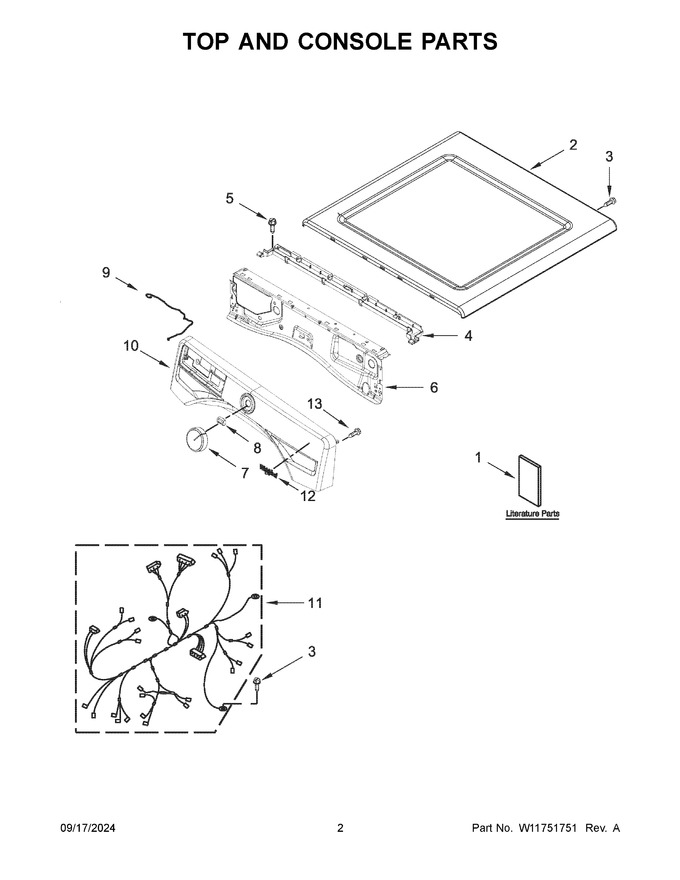

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11685596 | Owners Manual |
|
- | |||||
| 2 | W11315730 | Top (black) (Replaces: W11200177) |
|
$ 252.30 | |||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 23.74 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 6 | W11480682 | Bracket, Console |
|
$ 81.21 | |||||
| 7 | W11746647 | Assembly, Knob (Replaces: W11709754) |
|
$ 45.27 | |||||
| 8 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 9 | W11752166 | Harness, Acu To Hmi (Replaces: W11719384) |
|
- | |||||
| 10 | W11752186 | Assembly, Console (black) (Replaces: W11707402) |
|
- | |||||
| 11 | W11157862 | Harness, Wiring (main) |
|
$ 248.24 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 13 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 1A | W11708031 | Tech Sheet |
|
- | |||||
| 1B | W11708007 | Quick Start Guide |
|
- | |||||
| 1C | W11708004 | Energy Guide |
|
- |
