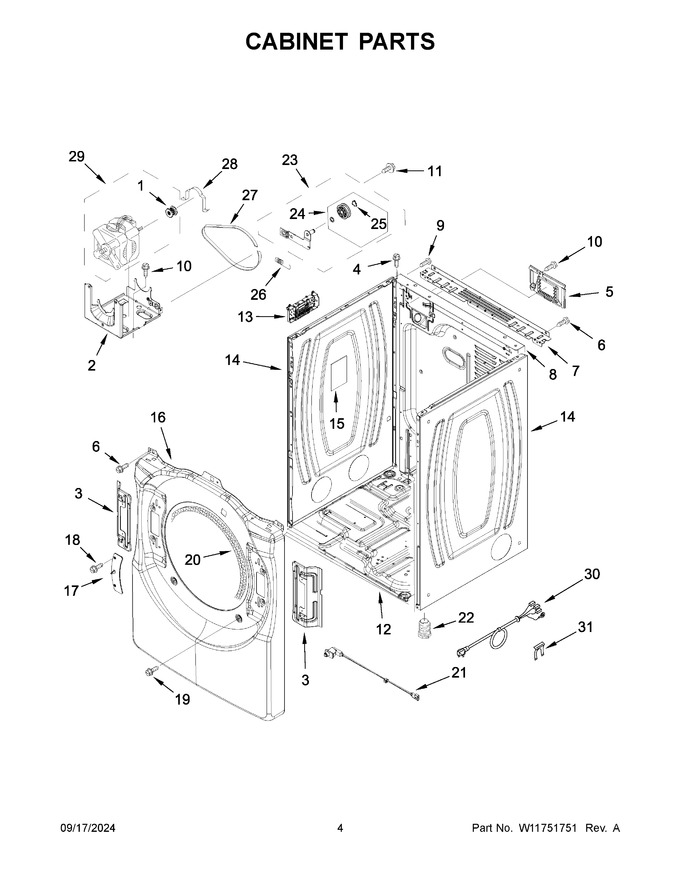

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 51.02 | ||||
| 2 | W11481730 | Bracket, Motor Mounting (Replaces: W11404905) |
|
Immediately | $ 94.84 | ||||
| 3 | W11747862 | Bracket, Hinge (Replaces: W11715541) |
|
$ 50.74 | |||||
| 4 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 5 | W11662367 | Cover, Terminal Block (Replaces: W11394868) |
|
$ 73.16 | |||||
| 6 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 7 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 8 | W10487430 | Panel, Rear |
|
Immediately | $ 357.12 | ||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 10 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 13 | W11847190 | Appliance Control Unit (acu) (Replaces: W11707356) |
|
Immediately | $ 267.83 | ||||
| 14 | W11315732 | Panel, Side (black) (Replaces: W11194423) |
|
Immediately | $ 320.99 | ||||
| 15 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 16 | W11805187 | Panel, Front (black) (Replaces: W11413346) |
|
- | |||||
| 17 | W11310031 | Strike, Door (Replaces: W11126752) |
|
$ 29.06 | |||||
| 18 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 19 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 20 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 21 | W11551763 | Assembly, Door Switch (Replaces: W11307535) |
|
Immediately | $ 33.27 | ||||
| 22 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 23 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 24 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 25 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 26 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 27 | W11667280 | Belt, Drive (Replaces: W11575710) |
|
$ 35.18 | |||||
| 28 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 29 | W11511154 | Assembly, Motor (Replaces: W11322192) |
|
Immediately | $ 282.52 | ||||
| 30 | W11710615 | Cord, Power (Replaces: W11578930) |
|
Immediately | $ 82.45 | ||||
| 31 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 | ||||
| NI | W10323246 | Dryer Exhaust Kit Not Included, Kit, 4-way Vent |
|
Immediately | $ 89.96 |
