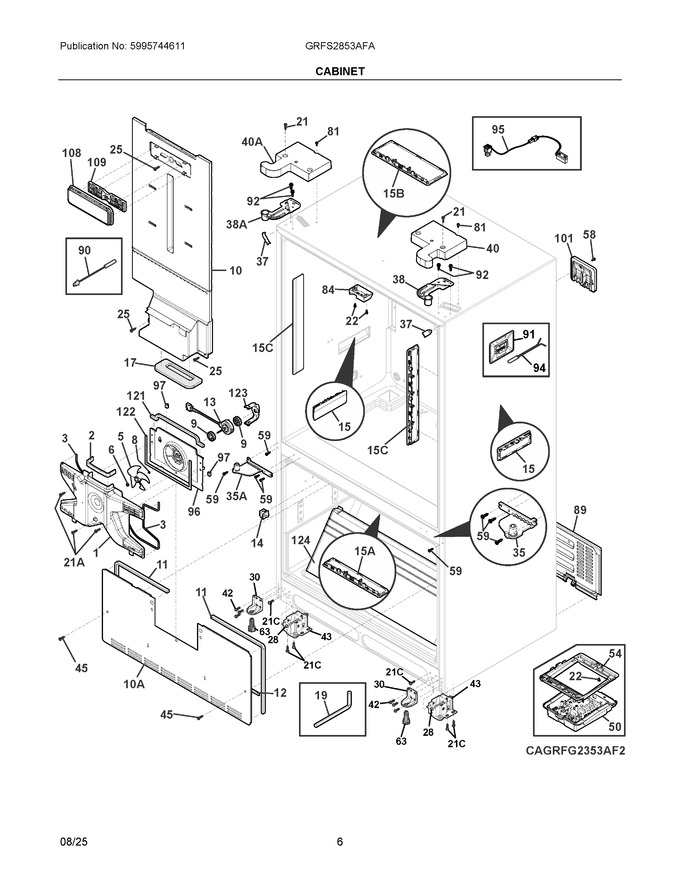

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304530963 | Cover, Evaporator Fan |
|
Immediately | $ 24.32 | ||||
| 2 | 218249809 | Seal, Fan Cover, Top |
|
Immediately | $ 9.27 | ||||
| 3 | 241860117 | Gasket, Closed Cell, Fan Cover |
|
Immediately | $ 12.46 | ||||
| 5 | 5304532795 | Blade, Evaporator Fan |
|
Immediately | $ 39.77 | ||||
| 6 | 5304531211 | Spring, Fan Hub |
|
$ 4.12 | |||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 20.48 | ||||
| 9 | 5304508006 | Bushing, Motor Mounting |
|
Immediately | $ 14.32 | ||||
| 10 | 5303918903 | Air Tower, Assembly, Complete, W/damper (Replaces: 5304531730) |
|
Immediately | $ 137.44 | ||||
| 11 | 241860104 | Gasket-coil Cover |
|
Immediately | $ 33.08 | ||||
| 12 | 241860105 | Gasket-coil Cover |
|
Immediately | $ 19.86 | ||||
| 13 | 140282033103 | Motor, Evaporator Fan, W/harness (Replaces: 809069206) |
|
Immediately | $ 62.55 | ||||
| 14 | 140118119027 | Switch, Door/light, White (Replaces: 5304520495) |
|
Immediately | $ 4.83 | ||||
| 15 | 5304530711 | Light Assembly, Led, Single, W/lens |
|
Immediately | $ 52.43 | ||||
| 17 | 140150584021 | Gasket, Air Duct, Bottom (Replaces: 5304530941) |
|
Immediately | $ 15.83 | ||||
| 19 | 5304531326 | Wrench, Allen, Door Alignment |
|
- | |||||
| 21 | 241732101 | Screw, 10-32 X 1/2 |
|
Immediately | $ 17.33 | ||||
| 22 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 25 | 240383407 | Screw, Truss Hd Quad, #10-16 X .500, White |
|
$ 14.18 | |||||
| 28 | 5304499445 | Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special (Replaces: 240335502) |
|
Immediately | $ 34.81 | ||||
| 30 | 241778702 | Bracket-anti Tip |
|
$ 22.69 | |||||
| 35 | 5304530887 | Hinge Assembly, Lower, Rh, W/adj Screw |
|
Immediately | $ 42.19 | ||||
| 37 | 5304519618 | Trim-cabinet Corner, Gray |
|
$ 13.48 | |||||
| 38 | 5304530818 | Hinge Bracket, Rh, Upper |
|
$ 30.33 | |||||
| 40 | 5304535024 | Cover, Upper Hinge, Grey, Rh |
|
- | |||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 15.75 | ||||
| 43 | 5304533552 | Roller Assembly, 30 |
|
Immediately | $ 36.87 | ||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 5.06 | ||||
| 50 | 5304534597 | Main Power Board,, 50 # |
|
$ 222.66 | |||||
| 54 | 5304536492 | Support, Housing, Main Board |
|
Immediately | $ 20.06 | ||||
| 58 | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.37 | |||||
| 59 | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 63 | 5304533555 | Leveler, Anti-tip |
|
Immediately | $ 7.08 | ||||
| 81 | 134154100 | Screw, Hex Head, #10-32 X 3/8 (Replaces: 242025601) |
|
$ 14.96 | |||||
| 84 | 5304530886 | Guide, Flipper Mullion |
|
$ 164.31 | |||||
| 89 | 5304520905 | Cover Assembly, Access, Metal |
|
Immediately | $ 82.25 | ||||
| 90 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.73 | ||||
| 91 | 5304508041 | Cover, Thermistor |
|
$ 13.24 | |||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 14.96 | |||||
| 93 | 5304533035 | Switch-light, 93 # |
|
Immediately | $ 15.36 | ||||
| 94 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 26.38 | ||||
| 95 | 5304531013 | Harness, Wiring, Jumper, W/reed Switch |
|
Immediately | $ 36.24 | ||||
| 96 | 242204604 | Shroud, Assembly, Evap Fan, W/gaskets |
|
Immediately | $ 32.41 | ||||
| 97 | 241860130 | Gasket, Fan Cover Clip, (2) |
|
- | |||||
| 101 | 5304535835 | Cover, Water Tube |
|
$ 7.57 | |||||
| 108 | 5304531021 | Housing Assembly, Air Filter |
|
$ 55.64 | |||||
| 109 | 5304531207 | Air Filter Assembly |
|
Immediately | $ 41.57 | ||||
| 121 | 241860103 | Gasket-evap, Upper |
|
Immediately | $ 4.14 | ||||
| 122 | 241860117 | Gasket-evap, Bottom (Replaces: 241860102) |
|
Immediately | $ 12.46 | ||||
| 123 | 5304508007 | Bracket, Fan Motor Mtg. |
|
$ 16.01 | |||||
| 124 | 242006903 | Duct-air, Freezer |
|
Immediately | $ 70.78 | ||||
| 10A | 241860404 | Cover, Evaporator Coil, Lower |
|
Immediately | $ 75.45 | ||||
| 15A | 5304530713 | Light Assembly, Led, Double, W/lens |
|
Immediately | $ 80.67 | ||||
| 15B | 5304530715 | Light Assembly, Led, Wide Double, W/lens |
|
Immediately | $ 84.26 | ||||
| 15C | 140299029276 | Light Assembly, Led, Triple, W/lens (Replaces: 5304530717) |
|
Immediately | $ 74.95 | ||||
| 21A | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 35A | 5304530888 | Hinge Assembly, Lower, Lh, W/adj Screw |
|
Immediately | $ 54.01 | ||||
| 38A | 5304530819 | Hinge Bracket, Lh, Upper |
|
$ 30.33 | |||||
| 40A | 5304535025 | Cover-hinge Lh Disp Ss, 40a |
|
$ 38.04 | |||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 19.69 | |||||
| NI | 241695906 | Screw, 10-16ab X 0.50 |
|
$ 21.26 | |||||
| NI | 242039702 | Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer |
|
$ 4.73 | |||||
| NI | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NIA | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.37 | |||||
| NIA | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.83 | |||||
| NIA | 5304531189 | Shield, Switch |
|
- | |||||
| NIA | 241842301 | Cap-thermistor |
|
Immediately | $ 37.80 | ||||
| NIB | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| NIC | 241969001 | Cap, Screw |
|
$ 18.54 |
