SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet


05 - Shelves


06 - Cooling System


07 - Controls & Ice Dispenser


08 - Ice Container

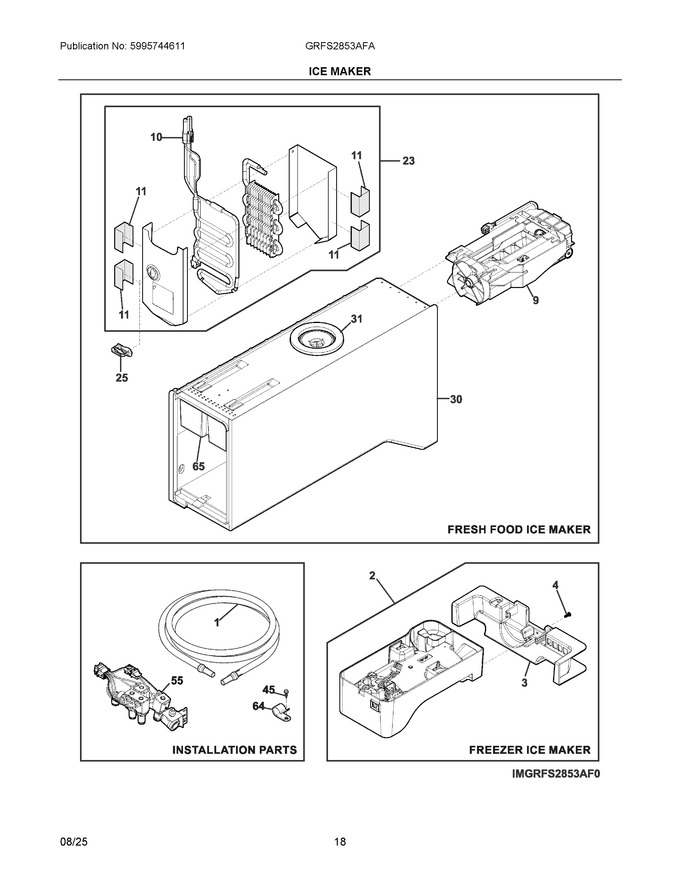

09 - Ice Maker


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976443		Tube, Water, 23.62", Yellow, Valve, To Door			Immediately	$ 16.01
2	A21755301		Ice Maker, Assembly, Freezer, Twist Tray			Immediately	$ 213.41
3	5304453707		Screw, Quad Hilo, #8-18 X 0.50   (Replaces: 241953901)			Immediately	$ 17.69
4	5304531313		Bracket, Ice Maker Block, White, Freezer				$ 91.06
9	243297608		Ice Maker, Assembly, Fresh Food, 115 V, Twist Tray			Immediately	$ 182.68
10	5304519629		Clip, Heater/tubing				$ 9.27
11	5304485759		Tape, 3" X 1", Foil				$ 0.79
23	140068083108		Evaporator Assembly, Complete, Ff Ice Maker   (Replaces: 5304530680)				$ 92.85
25	5304508037		Connector, Harness, Evap Cover				$ 16.01
30	5304531299		Housing Assembly, Ice Maker, White, Fresh Food				$ 177.57
31	5304530725		Gasket-housing, Funnel		Appelez-nous	-
45	5304453923		Screw, Hex Hd Wshr, #8-32 X 1/2		Appelez-nous	-
55	4056027578		Valve, Water, Quad Solenoid   (Replaces: 5304530878)			Immediately	$ 119.54
64	5304453921		Clamp-cable		Appelez-nous	-
65	140126257066		Cover, Wiring   (Replaces: 5304530710)		Appelez-nous	-
NIA	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 78.40
NIA	5303918645		Thermistor Kit, Evaporator, W/connector			Immediately	$ 94.00
NIA	218709101		Screw, Hex Head, 10-32 X 0.500				$ 7.09
NIA	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 19.01
NIB	240363602		Screw-shoulder				$ 15.17
NIB	5304535843		Tube Assembly, Click Connex, Blue, Female			Immediately	$ 11.97
NIB	5304530732		Harness, Wiring, Air Handler, W/evap Thrmistr			Immediately	$ 68.59
NIC	5304535844		Click Connex Female Green				$ 11.97

    View Diagram in Separate Window       Print Part List
