Diagram # Part Number Description Series Availability Ships Price Add to Cart
101 5304538119 Top Membrane Special Order $ 37.59

102 5304538120 Top Pcb Special Order $ 86.98

103 5304537598 Sealing Gasket Appelez-nous -
104 5304538332 Console Special Order $ 69.83

105 5304538121 Front Pcb Special Order $ 7.92

106 5304538333 Light Conductor Appelez-nous -
107 5304538122 Insert Adhesive In-Stock Immediately $ 36.04

108 5304538123 Metal Insert Appelez-nous -
110 5304538334 Handle Box Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

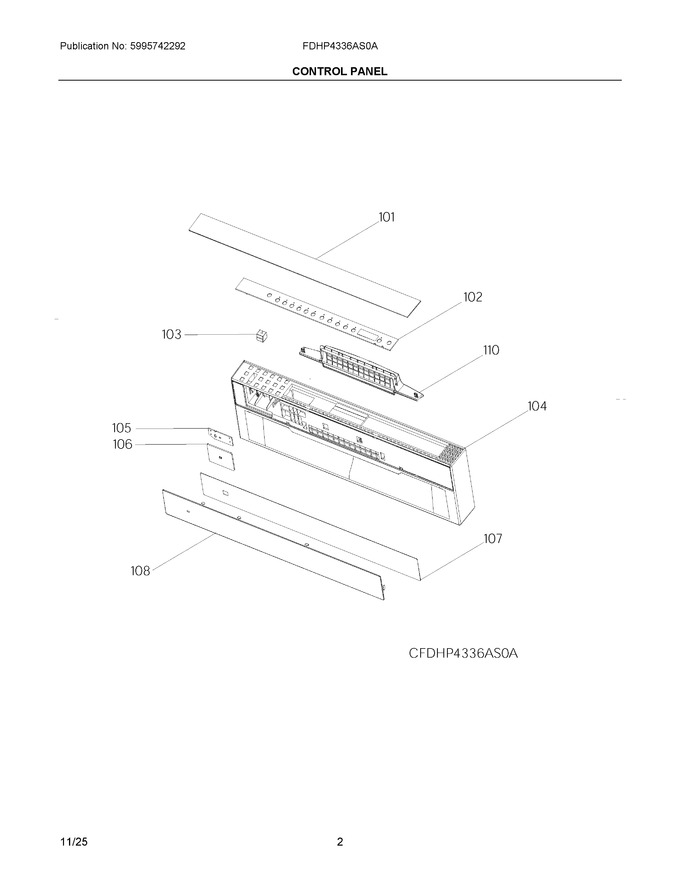

Diagram for FDHP4336AS0A
