01 - Cover Sheet
02 - Control Panel
03 - Door
04 - Tub

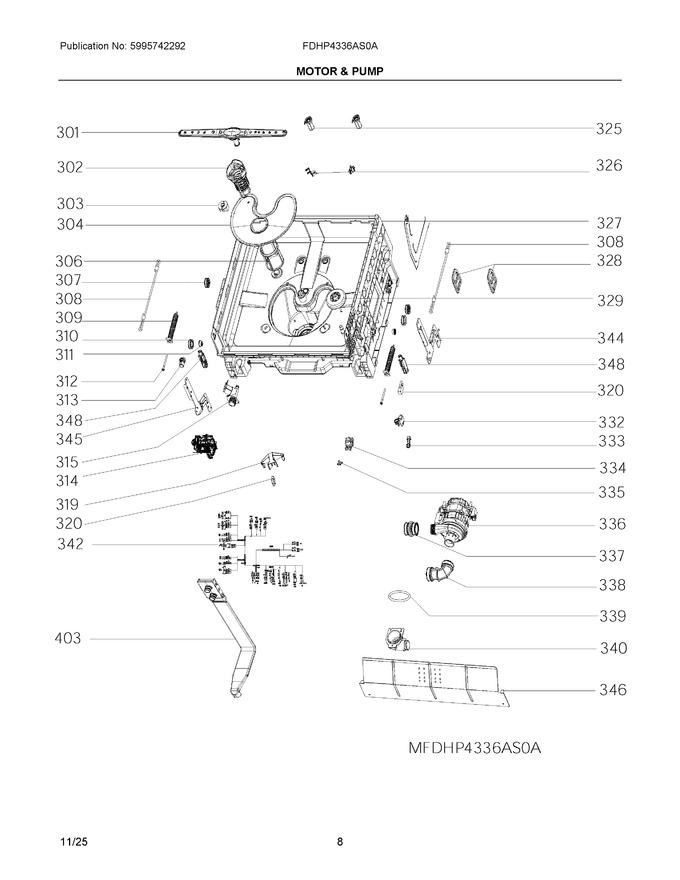

05 - Motor & Pump
06 - Frame
07 - Racks
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 301 | 5304519301 | Spray Arm, Assembly, Lower |
|
Immediately | $ 115.08 | ||||
| 302 | 5304516677 | Filter Handle (Replaces: 5304537626) |
|
- | |||||
| 303 | 5304537627 | Thermostat |
|
$ 6.33 | |||||
| 304 | 5304516678 | Filter Assembly, Plane |
|
- | |||||
| 306 | 5304516676 | Filter, Cylindrical |
|
- | |||||
| 307 | 5304537629 | Rope Pulley |
|
- | |||||
| 308 | 5304538124 | Door Rope |
|
- | |||||
| 309 | 5304519262 | Spring Assembly, Door Hinge |
|
- | |||||
| 310 | 5304537630 | Wheel |
|
- | |||||
| 311 | 5304537631 | Pin |
|
- | |||||
| 312 | 5304519263 | Screw, Adjustment, Door Spring |
|
- | |||||
| 313 | 5304537632 | Check Valve Seat, Assembly |
|
- | |||||
| 314 | 5304537633 | Drain Pump |
|
$ 68.15 | |||||
| 315 | 5304537634 | Inlet Valve |
|
$ 46.03 | |||||
| 319 | 5304537637 | Float Seat |
|
- | |||||
| 320 | 5304516666 | Switch, Float |
|
$ 42.36 | |||||
| 325 | 5304537641 | Plastic Sleeve |
|
- | |||||
| 326 | 5304537642 | Bracket |
|
$ 2.73 | |||||
| 327 | 5304537643 | Base |
|
Immediately | $ 151.01 | ||||
| 328 | 5304537644 | Wash Pump Holder |
|
- | |||||
| 329 | 5304537645 | Floater |
|
$ 3.70 | |||||
| 332 | 5304537646 | Float Seat |
|
- | |||||
| 333 | 5304537647 | Float Shrapnel |
|
- | |||||
| 334 | 5304519282 | Thermostat |
|
$ 99.60 | |||||
| 335 | 5304483441 | Thermistor (Replaces: 5304537648) |
|
Immediately | $ 48.83 | ||||
| 336 | 5304537649 | Washing Pump |
|
$ 185.18 | |||||
| 337 | 5304522083 | Tube, Connector, Pump Outlet |
|
Immediately | $ 24.10 | ||||
| 338 | 5304537650 | Inlet Pipe |
|
Immediately | $ 7.97 | ||||
| 339 | 5304537651 | Ring, O Type, Sealing |
|
Immediately | $ 2.54 | ||||
| 340 | 5304537652 | Shunt Cover, Chamber, Valve |
|
- | |||||
| 342 | 5304538125 | Main Wire Harness |
|
- | |||||
| 344 | 5304537653 | Hinge Holder, Left |
|
- | |||||
| 345 | 5304537654 | Hinge Holder, Right |
|
- | |||||
| 346 | 5304537639 | Adjustable Baseboard |
|
$ 56.02 | |||||
| 348 | 4056035712 | Support (Replaces: 5304537655) |
|
Immediately | $ 5.09 | ||||
| 403 | 5304537658 | Inner Pipe, Assembly |
|
Immediately | $ 34.35 |
