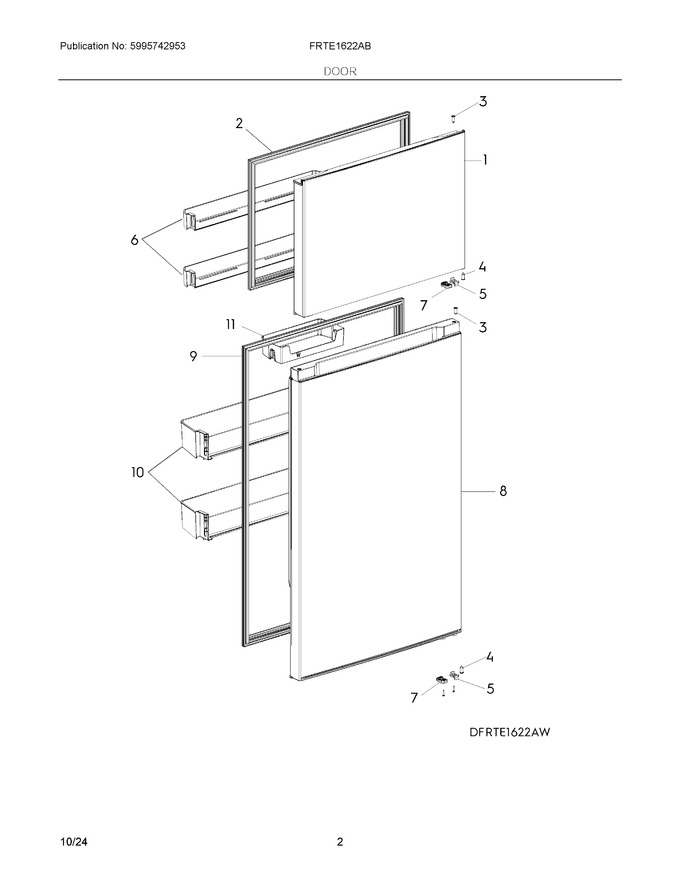

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537002		Door Assembly, Freezer, Black		Appelez-nous	-
2	5304537003		Gasket Assembly, Freezer		Appelez-nous	-
3	5304523525		Hinge Bearing, Door, Upper Hinge				$ 7.59
4	5304536942		Sleeve, Freezer		Appelez-nous	-
5	5304536943		Stopper, Freezer		Appelez-nous	-
6	5304536950		Bin, Door, White, Freezer				$ 59.64
7	5304536944		Door Lock, Freezer		Appelez-nous	-
8	5304537005		Door Assembly, Refrigerator, Black		Appelez-nous	-
9	5304537006		Gasket Assembly, Refrigerator		Appelez-nous	-
10	5304536951		Bin, Door, White, Fresh Food			Immediately	$ 112.72
11	5304536991		Bin, Small Tray			Immediately	$ 23.82
