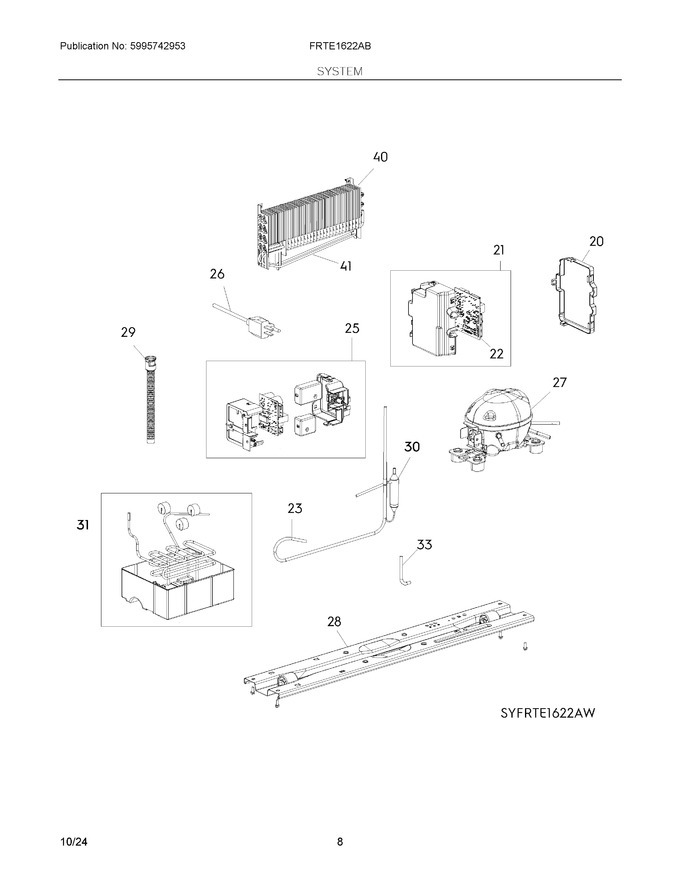

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
20	5304536975		Cover, Main, Control-panel		Appelez-nous	-
21	5304536976		Main Control Panel, Assembly				$ 127.71
22	5304536977		Main Pc Board			Immediately	$ 112.54
23	5304536986		Dryer, Filter			Immediately	$ 25.38
25	5304536978		Control-panel Assembly				$ 163.43
26	5304536983		Power Cord		Appelez-nous	-
27	5304536984		Compressor, Assembly				$ 255.06
28	5304536989		Base Assembly, Compressor, W/rollers		Appelez-nous	-
29	5304536985		Tube, Drain		Appelez-nous	-
30	5304536987		Tube, Suction			Immediately	$ 103.39
31	5304536988		Trough, Drain				$ 50.16
33	5304536990		Process Tube			Immediately	$ 32.55
40	5304536958		Evaporator, Assembly			Immediately	$ 173.69
41	5304536960		Heater, Defrost				$ 110.52
