SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic

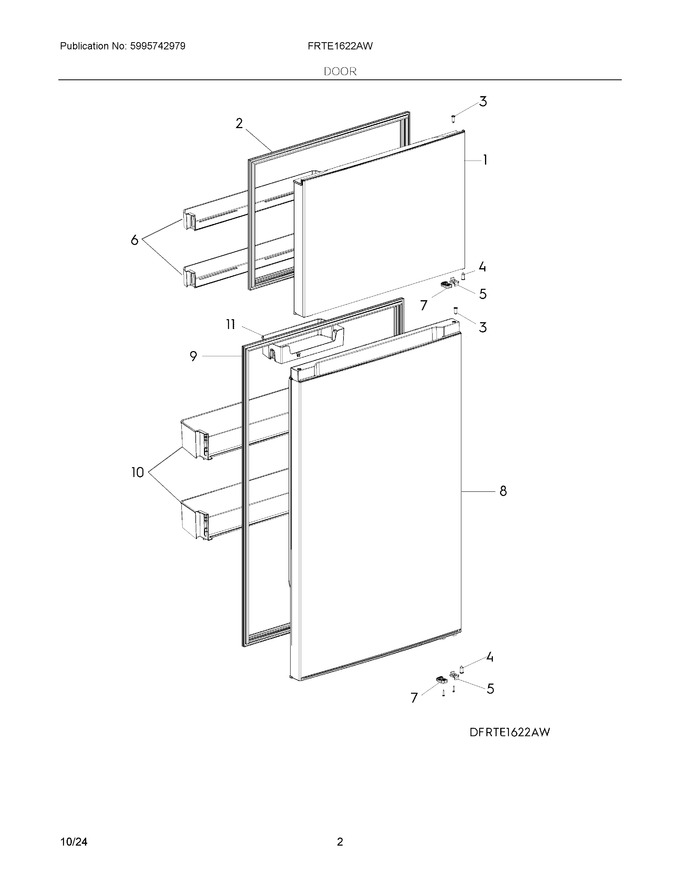

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304536939		Door Assembly, Freezer, White		Appelez-nous	-
2	5304536940		Gasket, Door, Freezer				$ 50.52
3	5304523525		Hinge Bearing, Door, Upper Hinge				$ 7.59
4	5304536942		Sleeve, Freezer		Appelez-nous	-
5	5304536943		Stopper, Freezer		Appelez-nous	-
6	5304536950		Bin, Door, White, Freezer				$ 59.64
7	5304536944		Door Lock, Freezer		Appelez-nous	-
8	5304536946		Door Assembly, Refrigerator, White				$ 235.12
9	5304536947		Gasket, Door, Refrigerator				$ 73.88
10	5304536951		Bin, Door, White, Fresh Food			Immediately	$ 112.72
11	5304536991		Bin, Small Tray			Immediately	$ 23.82

    View Diagram in Separate Window       Print Part List
