SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

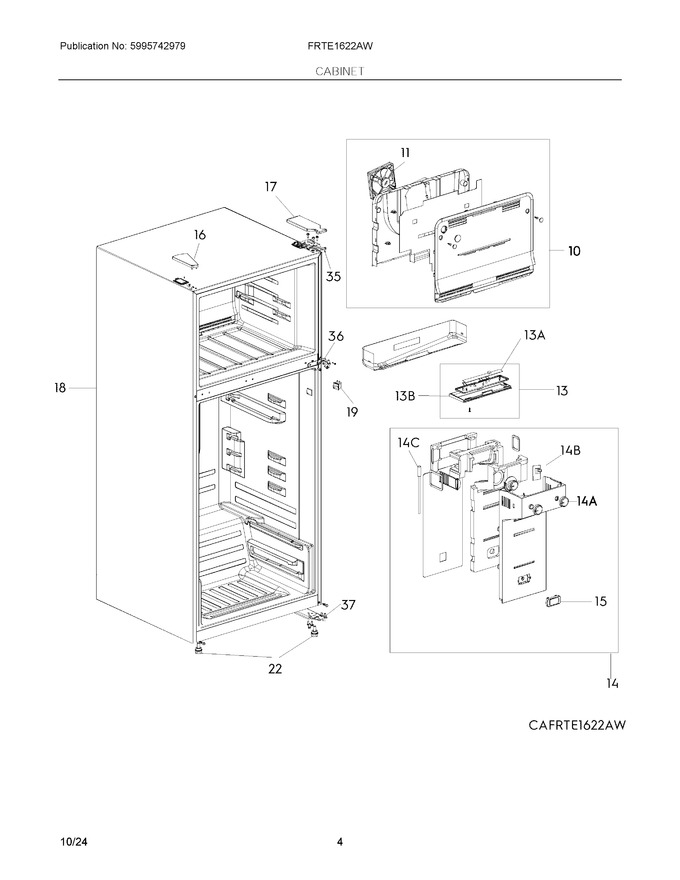

03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304536956		Air Duct, Assembly				$ 402.31
11	5304536957		Fan Motor Assembly, 11 #				$ 142.92
13	5304536961		Lamp Assembly		Appelez-nous	-
14	5304536964		Air Duct Assembly, Refrigerator				$ 116.43
15	5304536968		Cover, Air-duct		Appelez-nous	-
16	5304536969		Cover, Hinge, Upper-left		Appelez-nous	-
17	5304536970		Cover, Hinge, Upper-right		Appelez-nous	-
18	5304536971		Screw, Hinge		Appelez-nous	-
19	5304498687		Switch, Lamp/light				$ 51.03
22	5304492659		Foot, Adjustable, Cabinet		Appelez-nous	-
35	5304536972		Hinge, Door, Upper		Appelez-nous	-
36	5304536973		Hinge, Middle				$ 13.45
37	5304536974		Hinge Assembly, Door, Lower				$ 25.16
13A	5304536962		Light Bulb, Lamp				$ 21.03
13B	5304536963		Lamp Cover		Appelez-nous	-
14A	5304536965		Knob, Control			Immediately	$ 1.30
14B	5304536966		Control-panel				$ 34.27
14C	5304536967		Thermostat, Temperature			Immediately	$ 9.91

    View Diagram in Separate Window       Print Part List
