01 - Cover Sheet

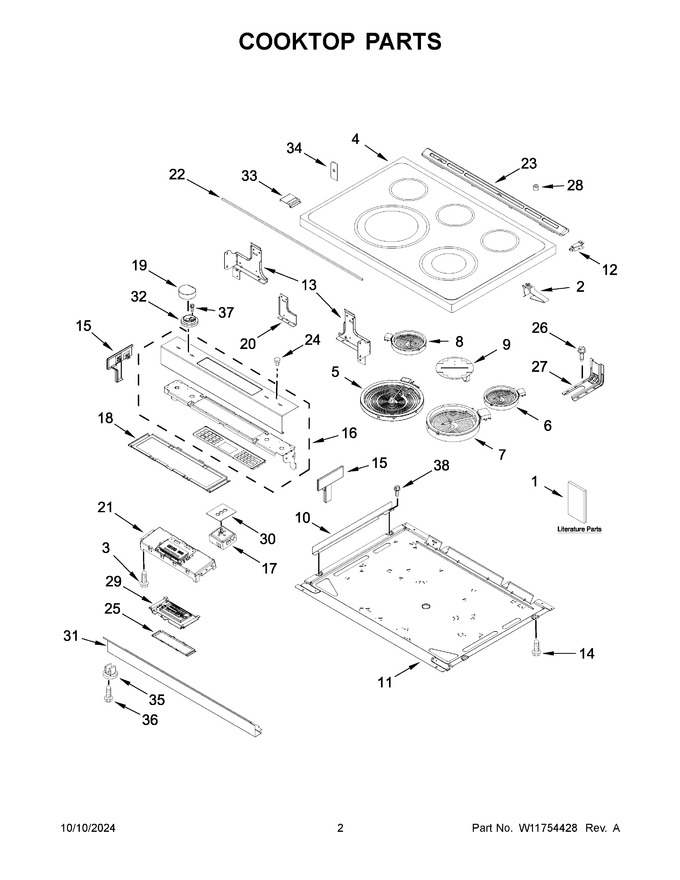

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11604186 | Control Guide |
|
- | |||||
| 2 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10738936 | Cooktop (stainless) (Replaces: W10536299) |
|
Immediately | $ 770.80 | ||||
| 5 | W11563195 | Element (3000w) (left Front) (Replaces: W11318371) |
|
Immediately | $ 222.58 | ||||
| 6 | W11171119 | Element (1200w) (left Rear And Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 8 | WPW10342780 | Element (1300w) (left Rear) (Replaces: W10342780) |
|
Immediately | $ 145.32 | ||||
| 9 | W11758687 | Element, Warm Zone (center Rear) (Replaces: W11684384) |
|
- | |||||
| 10 | W11175271 | Bracket, Radiant |
|
$ 77.91 | |||||
| 11 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 14 | W11244557 | Screw (Replaces: 3196173) |
|
$ 14.29 | |||||
| 15 | W10557751 | Endcap (stainless (left)) |
|
$ 168.85 | |||||
| 16 | W11647005 | Console (stainless) (Replaces: W11606820) |
|
$ 488.33 | |||||
| 17 | W11129442 | Switch, Infinite (left Front) (Replaces: W10437097) |
|
Immediately | $ 100.57 | ||||
| 18 | W10557780 | Bracket , Control |
|
$ 36.68 | |||||
| 19 | W11233555 | Knob (stainless) (Replaces: W10505763) |
|
$ 82.74 | |||||
| 20 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 21 | W11802929 | Control Mrc2 (Replaces: W11603769) |
|
$ 405.10 | |||||
| 22 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 23 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 145.75 | ||||
| 24 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 25 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 26 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 27 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 28 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 29 | W11120573 | Assembly, Display (Replaces: W10759324) |
|
Immediately | $ 512.12 | ||||
| 30 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 31 | W10565662 | Console, Lower Panel (stainless) |
|
$ 209.37 | |||||
| 32 | W11647014 | Bezel (stainless) (Replaces: W11592977) |
|
- | |||||
| 33 | W11158783 | Shield, Keypad |
|
- | |||||
| 34 | W10882900 | Gasket |
|
$ 23.34 | |||||
| 35 | W11025100 | Grommet (Replaces: W10645947) |
|
Immediately | $ 13.16 | ||||
| 36 | W10516115 | Screw |
|
$ 14.52 | |||||
| 37 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 38 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 15A | W10557754 | Endcap (stainless (right)) |
|
$ 168.85 | |||||
| 17A | W10911303 | Switch, Infinite (left Rear And Right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 17B | W10917724 | Switch, Infinite (right Front And Left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 1A | W11602517 | Owners Manuel |
|
- | |||||
| 1B | W11382913 | Tech Sheet |
|
- | |||||
| 1C | W11602530 | Quick Start Guide |
|
- | |||||
| 1D | W11615555 | Dimension Guide |
|
- | |||||
| NI | 7111P01760 | Clamp, Wire |
|
- | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 236.93 | ||||
| NI | W11226773 | Harness, Console (Replaces: W11172417) |
|
$ 211.70 | |||||
| NI | W11226786 | Harness, Cooktop (Replaces: W11134658) |
|
Immediately | $ 241.75 | ||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W11630995 | Harness, Main |
|
$ 312.09 | |||||
| NI | W11647007 | Harness, Bake Drawer (Replaces: W11630991) |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 20.97 |
