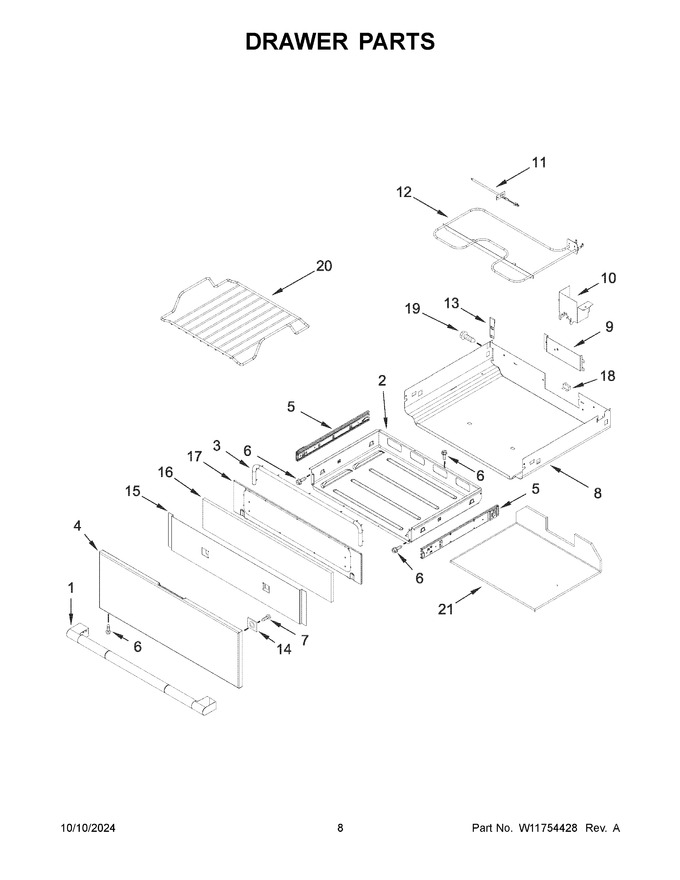

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11647008 | Assembly, Door Handle (stainless) (Replaces: W11600908) |
|
Immediately | $ 392.10 | ||||
| 2 | W11036176 | Drawer,bake (Replaces: W10757442) |
|
$ 218.65 | |||||
| 3 | W10550987 | Seal, Drawer |
|
$ 170.36 | |||||
| 4 | W10541958 | Panel, Drawer Front (stainless) |
|
$ 198.09 | |||||
| 5 | W11670722 | Slide, Drawer (left) (Replaces: W11399928) |
|
Immediately | $ 134.05 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | WP8533988 | Screw (Replaces: 8533988) |
|
Immediately | $ 8.78 | ||||
| 8 | W10634260 | Enclosure, Warming |
|
Immediately | $ 209.02 | ||||
| 9 | W10727084 | Cover, Gas Valve |
|
$ 87.58 | |||||
| 10 | W10634259 | Cover, Wire |
|
$ 87.84 | |||||
| 11 | W11676788 | Sensor (Replaces: W10720530) |
|
Immediately | $ 53.71 | ||||
| 12 | W10541944 | Element, Bake |
|
Immediately | $ 164.86 | ||||
| 13 | W10551019 | Cover, Side |
|
$ 89.08 | |||||
| 14 | 3823F01745 | Spacer, Handle |
|
- | |||||
| 15 | W10551018 | Insulation, Drawer Front |
|
$ 112.83 | |||||
| 16 | W11688515 | Insulation, Drawer (Replaces: W10550982) |
|
$ 119.53 | |||||
| 17 | W10541947 | Panel, Front Inner |
|
$ 171.63 | |||||
| 18 | W10729897 | Fuse, Thermal |
|
$ 39.44 | |||||
| 19 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 20 | W10602493 | Rack, Bake Drawer |
|
$ 619.06 | |||||
| 21 | W11688775 | Insulation, Bake Drawer Bottom (Replaces: W10551011) |
|
- | |||||
| 5A | W11670723 | Slide, Drawer (right) (Replaces: W11399929) |
|
Immediately | $ 134.05 |
