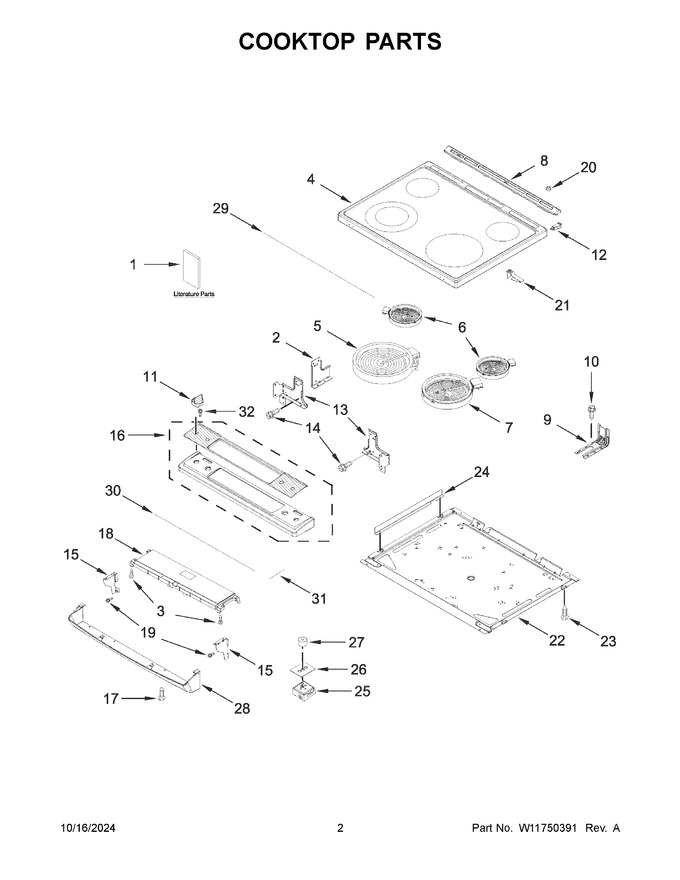

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11676962 | Quick Start Guide |
|
- | |||||
| 2 | W10814305 | Bracket, Console (center) |
|
- | |||||
| 3 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 4 | W11048763 | Cooktop (white) (Replaces: W10825865) |
|
$ 557.81 | |||||
| 5 | W11517959 | Element (3000w Dual) (left Front) (Replaces: W11282542) |
|
Immediately | $ 134.44 | ||||
| 6 | W11171119 | Element (1200w) (left Rear And Right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | WP8273993 | Element (1800w) (right Front) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 8 | W10636527 | Vent, Trim Top (white) |
|
$ 251.33 | |||||
| 9 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | W10844797 | Knob (white) |
|
Immediately | $ 78.95 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10814303 | Support, Cooktop (left) |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W11048162 | Console (white) (Replaces: W10825349) |
|
Immediately | $ 530.53 | ||||
| 17 | W10516115 | Screw |
|
$ 14.52 | |||||
| 18 | W11594269 | Control, Electronic (lcx) (white) (Replaces: W11515101) |
|
$ 377.35 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 20 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 21 | W11663556 | Spring, Element (Replaces: W11600012) |
|
Immediately | $ 14.84 | ||||
| 22 | W10536275 | Pan, Radiant |
|
$ 181.61 | |||||
| 23 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 24 | W11175271 | Bracket, Radiant |
|
$ 77.91 | |||||
| 25 | W10911303 | Switch, Infinite (left Rear And Right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 | ||||
| 26 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 27 | W10702912 | Gasket, Switch Stem |
|
$ 29.82 | |||||
| 28 | W10894127 | Panel, Front (white) (Replaces: W10816942) |
|
Immediately | $ 535.85 | ||||
| 29 | W10802441 | Gasket, Console And Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 30 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 21.33 | |||||
| 31 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 22.92 | |||||
| 32 | W10674068 | Screw |
|
$ 24.39 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10814304 | Support, Cooktop (right) |
|
- | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 1A | W11432248 | Owners Manual |
|
- | |||||
| 1B | W11326822 | Tech Sheet |
|
- | |||||
| 25A | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 25B | W11661906 | Switch, Infinite (right Front) (Replaces: W10843843) |
|
Immediately | $ 19.59 | ||||
| NI | 7111P01760 | Clamp, Wire |
|
- | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 20.97 | |||||
| NI | W11316896 | Harness, Cooktop (Replaces: W11190436) |
|
$ 227.61 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11316895 | Harness, Console (Replaces: W11226233) |
|
$ 206.48 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11739787 | Harness, Main (Replaces: W11648725) |
|
Immediately | $ 348.56 |
