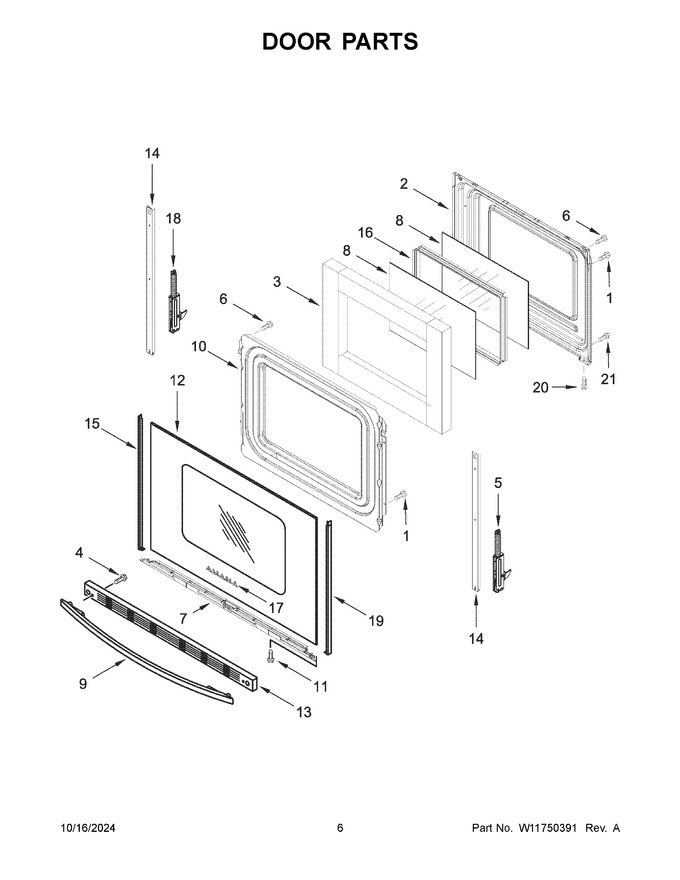

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
3	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
4	W10817436		Screw   (Replaces: W10168559)			Immediately	$ 8.14
5	WPW10440013		Hinge, Door (active)   (Replaces: W10388635)			Immediately	$ 63.80
6	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
7	W11594186		Trim, Lower Door (white)   (Replaces: W11444042)			Immediately	$ 61.37
8	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
9	W10817434		Handle, Oven Door (white)   (Replaces: W10323588)			Immediately	$ 234.82
10	W11539580		Retainer, Insulation   (Replaces: W11380222)				$ 233.31
11	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 14.72
12	W10904906		Glass, Window (white)   (Replaces: W10851723)				$ 228.32
13	W10817433		Trim, Oven Door Vent (white)   (Replaces: W10310920)			Immediately	$ 103.27
14	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
15	WP8523172		Trim, Door (white (left))   (Replaces: 8523172)			Immediately	$ 69.93
16	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
17	W10849465		Badge (white)			Immediately	$ 82.81
18	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 63.80
19	WP8523166		Trim, Door (white (right))   (Replaces: 8523166)			Immediately	$ 84.23
20	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80
21	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
