Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319109 Support, Backguard (black (left)) Special Order $ 92.84

2 7101P42660 Screw Appelez-nous -
3 W11084228 Console (black Stainless)   (Replaces: W11024860) Special Order $ 561.98

4 7101P63460 Screw Appelez-nous -
5 W11620682 Control, Maxwell Electronic   (Replaces: W11541198) Special Order $ 475.15

6 W11430942 Assembly, User Interface (includes Light Feature) (black)   (Replaces: W10619109) Special Order $ 858.61

7 W10278697 Shield, Vent In-Stock Immediately $ 183.33

8 W11245710 Screw   (Replaces: 9780274) In-Stock Immediately $ 14.75

9 W10776098 Cover, Backguard Special Order $ 135.81

10 W11684874 Insulation, Wire Cover   (Replaces: W10309232) Special Order $ 35.56

11 ARI1C00E9EEC205AEB838A92166625CD731 Skin, Control Panel (not Serviced) Appelez-nous -
12 WPW10241367 Screw   (Replaces: W10241367) Special Order $ 6.27

1A W10319111 Support, Backguard (black (right)) Special Order $ 43.80


    View Diagram in Separate Window     Print Icon   Print Part List

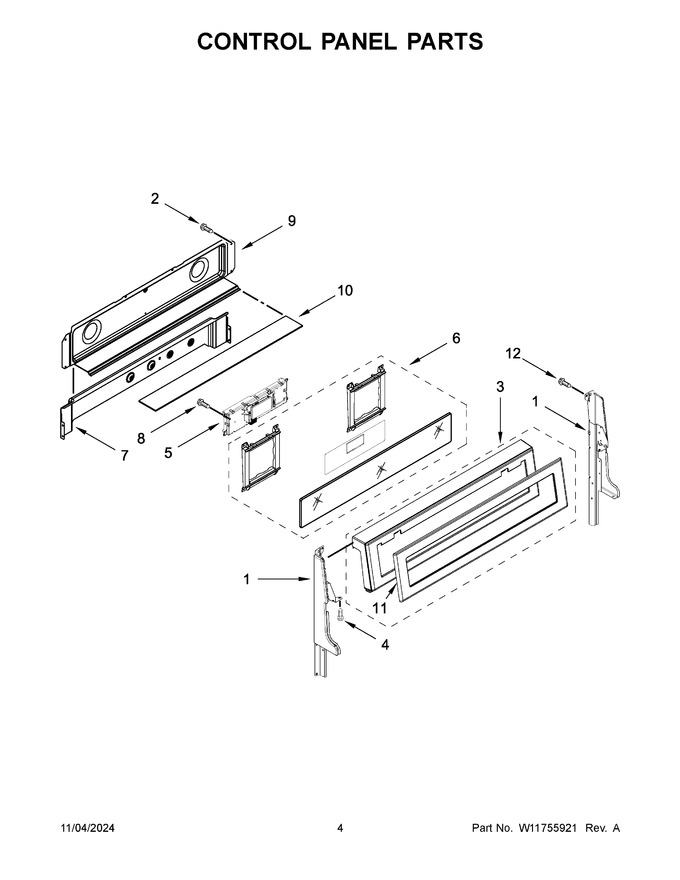

Diagram for KFGD500EBS11
