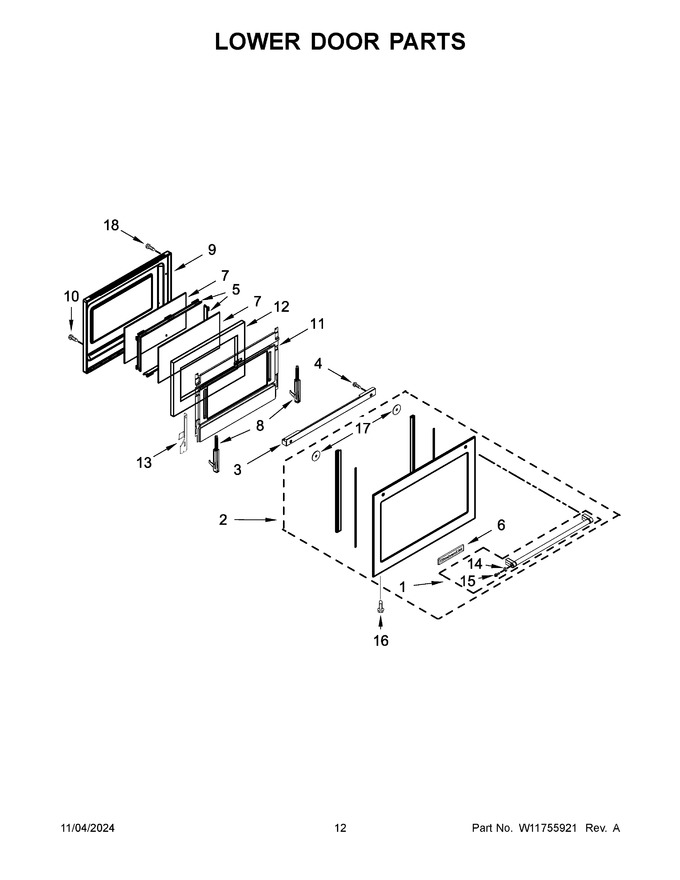

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11305107 | Assembly, Handle (black) |
|
$ 194.60 | |||||
| 2 | W11599839 | Assembly, Door (black Stainless) (Replaces: W11528017) |
|
- | |||||
| 3 | W10575689 | Bracket, Handle |
|
$ 145.99 | |||||
| 4 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 5 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 197.39 | ||||
| 6 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 7 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 141.95 | ||||
| 8 | WPW10335434 | Hinge, Door (left) (Replaces: W10335434) |
|
Immediately | $ 102.90 | ||||
| 9 | WPW10272698 | Lining, Door (Replaces: W10272698) |
|
$ 345.72 | |||||
| 10 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 7.55 | ||||
| 11 | W10340464 | Retainer, Insulation |
|
$ 289.80 | |||||
| 12 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 106.43 | |||||
| 13 | WPW10272329 | Receiver (left) (Replaces: W10272329) |
|
$ 81.11 | |||||
| 14 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 23.14 | ||||
| 15 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.95 | ||||
| 16 | W11690596 | Screw With Washer (Replaces: W10284411) |
|
$ 23.31 | |||||
| 17 | 7109P08460 | Washer, Fiber |
|
- | |||||
| 18 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 14.77 | ||||
| 13A | WPW10272328 | Receiver (right) (Replaces: W10272328) |
|
$ 90.04 | |||||
| 8A | WPW10335433 | Hinge, Door (right) (Replaces: W10335433) |
|
$ 104.99 |
