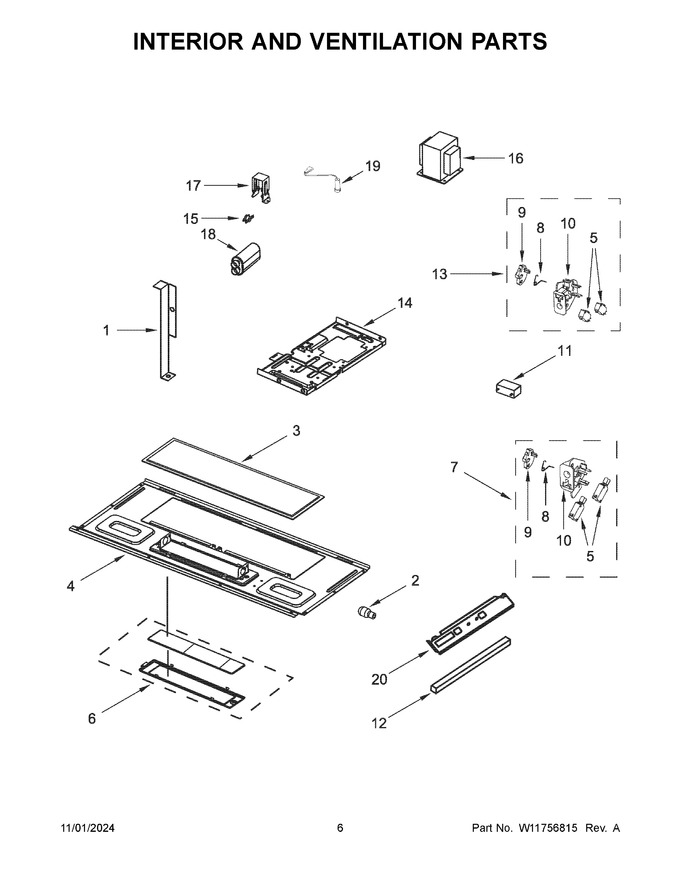

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313275		Bracket, Top Cavity				$ 35.62
2	W11520384		Lamp, Halogen			Immediately	$ 10.41
3	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 32.59
4	W11450485		Plate, Bottom				$ 62.97
5	ARI0D21584639E823BFBB5C96AA1C5530CB		Switches, Interlock (not Serviced, Order Interlock Assemblies)		Appelez-nous	-
6	W10240330		Assembly, Lamp Glass And Holder				$ 7.55
7	W11551761		Assembly, Lower Interlock (includes Switches)   (Replaces: W11433683)			Immediately	$ 30.78
8	W10156812		Spring, Interlock			Immediately	$ 12.14
9	W10562613		Plate, Cam			Immediately	$ 17.83
10	WP8206419		Support, Interlock   (Replaces: 8206419)			Immediately	$ 22.37
11	W11405832		Capacitor, Hood Motor				$ 28.60
12	W10571179		Seal, Cooling		Appelez-nous	-
13	W11551558		Assembly, Interlock (includes Switches)   (Replaces: W11433682)			Immediately	$ 33.70
14	W11520831		Chassis			Immediately	$ 65.88
15	W11574181		Thermostat, Cavity   (Replaces: W11397274)			Immediately	$ 43.63
16	W11737892		Transformer, High Voltage   (Replaces: W11737664)		Appelez-nous	-
17	W10532063		Bracket, Capacitor				$ 29.69
18	WPW10574736		Capacitor, High Voltage   (Replaces: W10574736)				$ 179.12
19	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 34.86
20	W11521327		Support, Ntc				$ 65.92
10A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 8.07

    View Diagram in Separate Window       Print Part List
