01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts

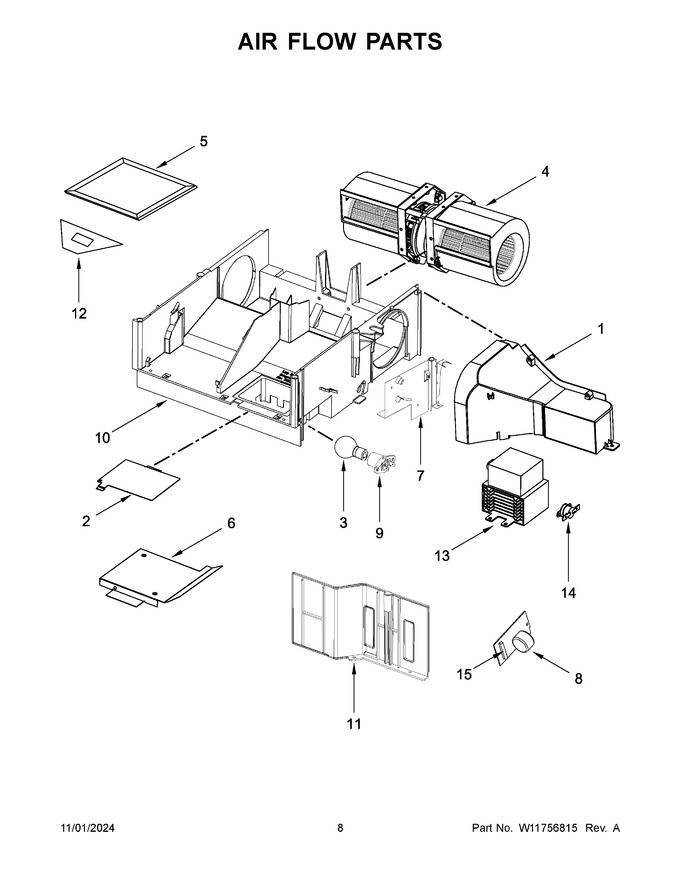

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 9.17 | |||||
| 3 | W11556218 | Bulb, Lamp (Replaces: W11541696) |
|
$ 14.27 | |||||
| 4 | W11441128 | Motor, Hood Fan (Replaces: W11409094) |
|
Immediately | $ 222.23 | ||||
| 5 | W10892387 | Filter, Charcoal (Replaces: W10845250) |
|
Immediately | $ 17.72 | ||||
| 6 | W10138797 | Guide, Air |
|
$ 95.20 | |||||
| 7 | W11293488 | Cover, Right Duct |
|
$ 84.08 | |||||
| 8 | W10422269 | Filter, Noise |
|
Immediately | $ 33.79 | ||||
| 9 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 34.87 | ||||
| 10 | W10828030 | Baseplate, Air Guide |
|
$ 107.01 | |||||
| 11 | W11520832 | Shield, Finger |
|
- | |||||
| 12 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 13 | W11737891 | Magnetron (Replaces: W11737661) |
|
$ 100.63 | |||||
| 14 | W10832024 | Thermostat, Magnetron |
|
$ 90.92 | |||||
| 15 | W11707984 | Fuse (Replaces: W10422951) |
|
Immediately | $ 45.85 |
