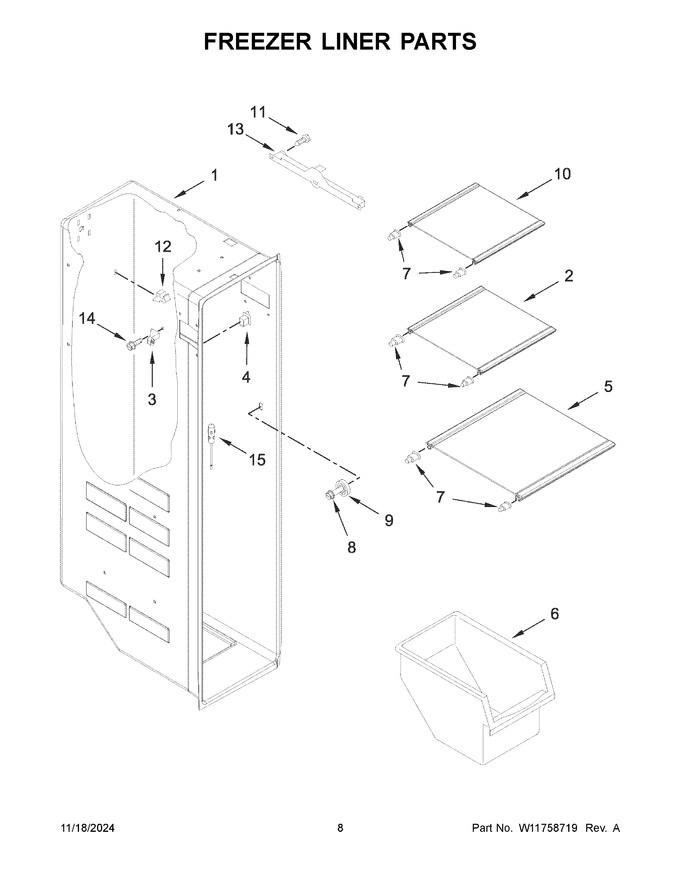

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI9208FF59B665205FA02090F61BA46518 | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W11162572 | Shelf, Glass (Replaces: W11048567) |
|
$ 118.69 | |||||
| 3 | 2196206 | Stud, Support |
|
- | |||||
| 4 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 5 | W11546980 | Shelf, Glass (bottom) (Replaces: W11454958) |
|
- | |||||
| 6 | W11577967 | Bin, Freezer (Replaces: W11427432) |
|
$ 96.30 | |||||
| 7 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 14.70 | ||||
| 8 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 9.14 | |||||
| 9 | W11223328 | Assembly, Stud (Replaces: 2196208) |
|
Immediately | $ 14.77 | ||||
| 10 | W11162576 | Shelf, Glass (top) (Replaces: W11048571) |
|
$ 134.69 | |||||
| 11 | 718257 | Screw (Replaces: 489100) |
|
- | |||||
| 12 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 10.94 | |||||
| 13 | W10845585 | Slide, Ice Container (left) |
|
$ 139.41 | |||||
| 14 | W10142289 | Screw (Replaces: 3400893) |
|
$ 9.61 | |||||
| 15 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 118.47 | ||||
| 13A | W10845583 | Slide, Ice Container (right) |
|
$ 130.12 |
