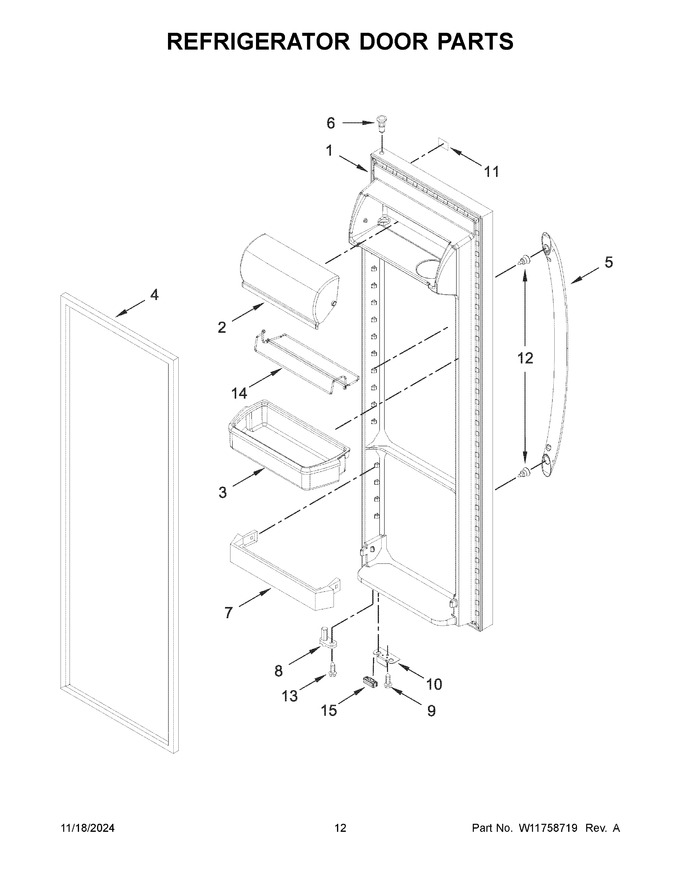

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10912320 | Door, Refrigerator (includes Door Gasket) (black Stainless) (Replaces: W10912320) |
|
$ 832.71 | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | W11239961 | Bin, Door (Replaces: W10900538) |
|
Immediately | $ 161.02 | ||||
| 4 | 2159083 | Gasket, Door (black) (Replaces: W10911422) |
|
$ 251.49 | |||||
| 5 | W11450223 | Handle (black Stainless) (Replaces: W11289639) |
|
Immediately | $ 188.98 | ||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 8.15 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 13.79 | |||||
| 9 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 10 | W11557261 | Bracket, Door Stop (Replaces: W11481760) |
|
Immediately | $ 18.67 | ||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 14 | W11797350 | Rack, Can (Replaces: W11517647) |
|
$ 222.44 | |||||
| 15 | W10407187 | Bumper, Door (black) |
|
$ 48.34 |
