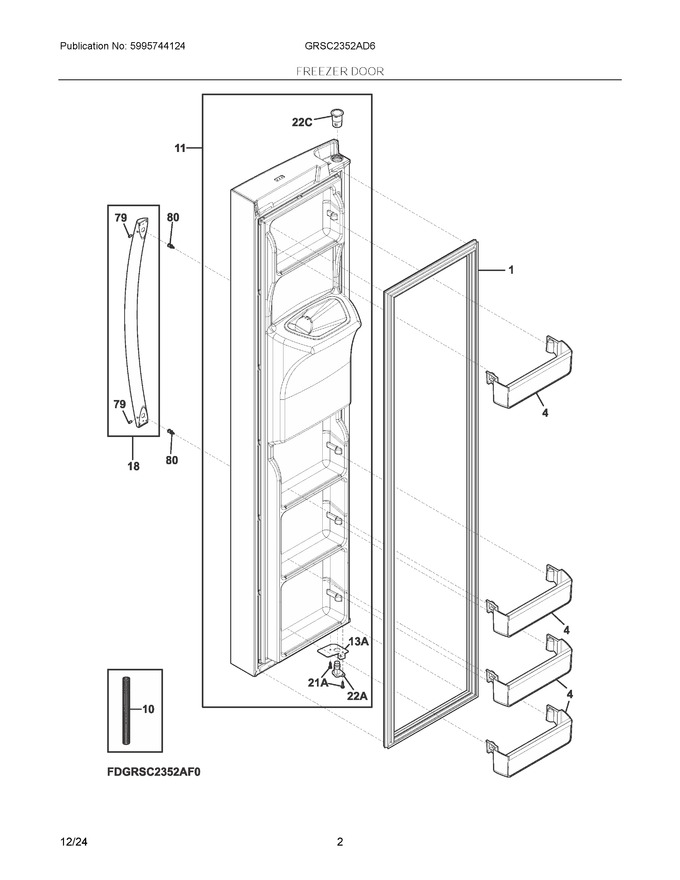

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241510208 | Gasket-door, Magnetic/frz |
|
Immediately | $ 105.50 | ||||
| 4 | 5304535014 | Bin-pseudo W/trim Cd Fzr Gall |
|
- | |||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 20.63 | |||||
| 11 | 5304527006 | Door Assembly, Freezer, Black Stainless, Complete |
|
$ 785.52 | |||||
| 18 | 5304527112 | Handle, Door, Black Stainless, W/set Screws |
|
Immediately | $ 116.29 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder , #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 241990202 | Door Stop, Black, Frzr |
|
Immediately | $ 23.63 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22A | 241990302 | Bearing-hinge(frz), Closer |
|
$ 7.88 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 21.26 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NI | 218976438 | Tube, Water, 62", Natural, Door, To Dispenser |
|
Immediately | $ 22.84 | ||||
| NI | 218515401 | Clip, Grille/tube , & Hinge |
|
$ 19.69 | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 4.21 | |||||
| NIA | 241601002 | Wrench, Allen |
|
- |
