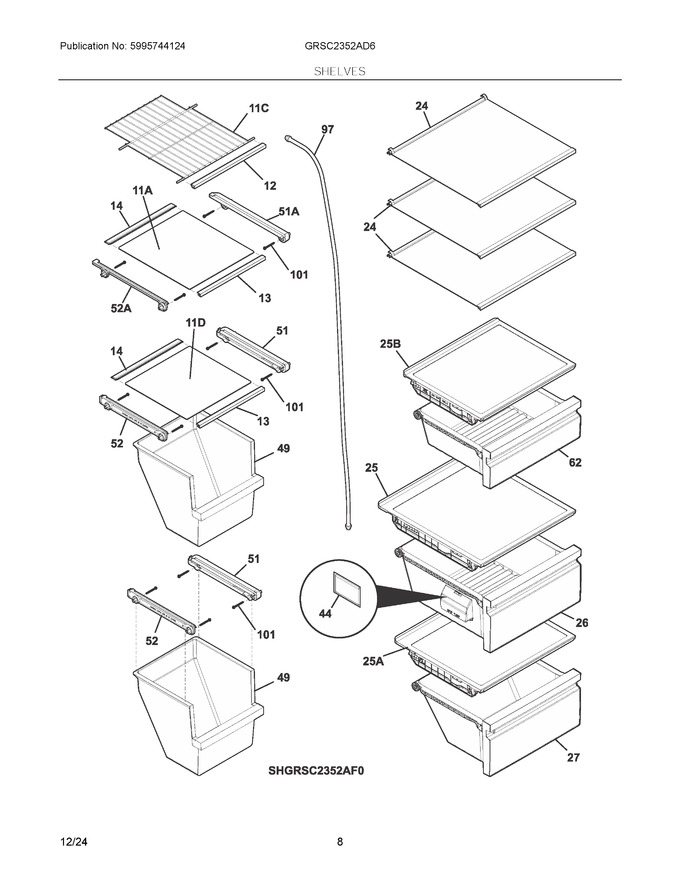

05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304527117		Trim, Wire Shelf, Metalic, Freezer, Front		Appelez-nous	-
13	5304527114		Trim, Glass Shelf, Metalic, Freezer, Front				$ 110.39
14	5304527130		Trim, Freezer Shelf, Rear				$ 113.76
24	5304526916		Shelf Assembly, Glass, Metal Trim			Immediately	$ 172.74
25	140116198155		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket   (Replaces: 5304526921)			Immediately	$ 93.40
26	5304526930		Crisper Pan, Upper Assy, W/rollers, Trim			Immediately	$ 246.49
27	5304526931		Crisper Pan, Lower Assy, W/rollers, Trim				$ 235.03
44	FRPAPKRF		Frig Freshness Booster Refill			Immediately	$ 17.33
49	5304536373		Basket, Freezer, Sliding, W/trim   (Replaces: 5304526904)				$ 82.19
51	5304526976		Hanger, Basket, Rh				$ 18.54
52	5304526977		Hanger, Basket, Lh				$ 18.54
62	5304526932		Deli Pan, Assembly, W/rollers, Trim				$ 225.59
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 14.96
101A	241637202		Screw, Hex Sems Head, 8-18ab X 1-3/4				$ 5.90
11A	240443358		Shelf-freezer, Glass, Upper				$ 107.86
11C	809078201		Shelf, Pizza		Appelez-nous	-
11D	240443399		Shelf, Freezer, Glass, Lower				$ 112.92
25A	5304526922		Crisper Cover, Assembly, Glass, Lower, W/trim-gasket				$ 147.32
25B	5304526923		Deli Cover, Assembly, Glass, W/trim-gasket				$ 146.52
51A	241514701		Hanger-shelf Glass, Rh				$ 70.88
52A	241514801		Hanger-shelf Glass, Lh				$ 381.94
NI	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 78.40
NIA	242200102		Clip, Tubing , 90 Deg Elbow				$ 11.81
