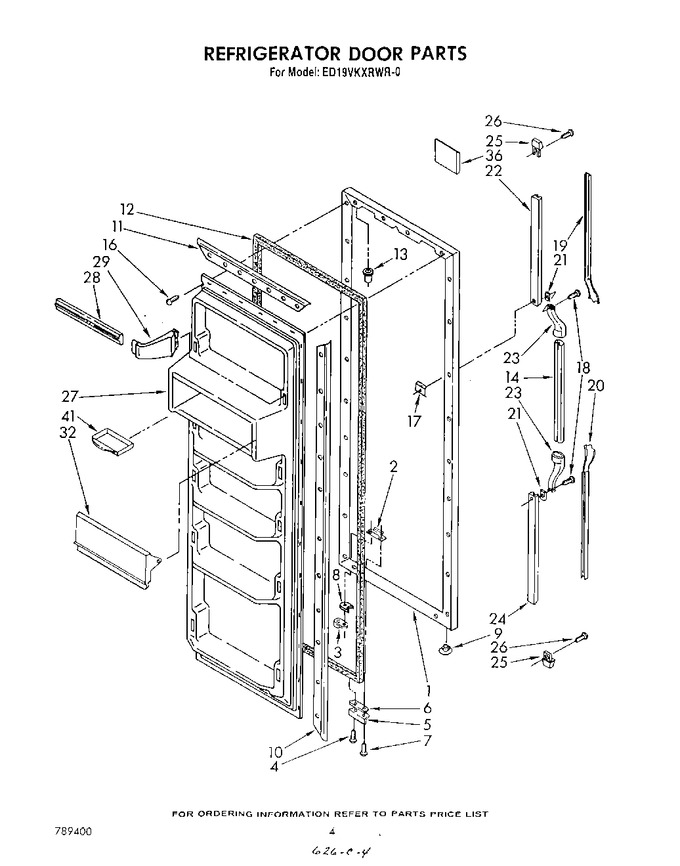

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1101364		Refrigerator, Door Panel (platinum)		Appelez-nous	-
1	941246		Refrigerator, Door Panel (white)		Appelez-nous	-
1	941248		Refrigerator, Door Panel (golden Harvest)		Appelez-nous	-
1	941250		Refrigerator, Door Panel (almond)		Appelez-nous	-
1	1101363		Refrigerator, Door Panel (toast)				$ 1.85
2	988402		Tap Plate		Appelez-nous	-
3	4318165		Door, Cam Upper   (Replaces: 986758)			Immediately	$ 29.74
4	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
5	988420		Bracket, Door Stop		Appelez-nous	-
6	988421		Shim		Appelez-nous	-
7	488549		Screw, 8 X 5/8		Appelez-nous	-
8	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
9	534927		Hole Plug		Appelez-nous	-
10	836120		Retainer, Side		Appelez-nous	-
11	836121		Retainer, Top & Bottom		Appelez-nous	-
12	2188404A		Door, Gasket Magnetic   (Replaces: 939565)				$ 269.26
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
14	1108897		Handle, Center		Appelez-nous	-
14	1108914		Handle, Center (for Platinum Model Only)		Appelez-nous	-
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
17	941242		Screw Anchor (2)		Appelez-nous	-
18	WPW10141645		Screw, 8 X 1/2 (4)   (Replaces: 489084)				$ 8.05
19	1108898		Insert, Handle (top) (white)		Appelez-nous	-
19	1108899		Insert, Handle (top) (golden Harvest)		Appelez-nous	-
19	1108900		Insert, Handle (top) (almond)		Appelez-nous	-
19	1108901		Insert, Handle (top) (toast)		Appelez-nous	-
19	1108902		Insert, Handle (top) (platinum)		Appelez-nous	-
20	1108907		Insert, Handle (bottom) (platinum)		Appelez-nous	-
20	1108903		Insert, Handle (bottom) (white)		Appelez-nous	-
20	1108904		Insert, Handle (bottom) (golden Harvest)		Appelez-nous	-
20	1108905		Insert, Handle (bottom) (almond)		Appelez-nous	-
20	1108906		Insert, Handle (bottom) (toast)		Appelez-nous	-
21	935075		Shim, End Cap (2)		Appelez-nous	-
22	941260		Insert Retainer (top)		Appelez-nous	-
23	935103		Center End Cap (2)		Appelez-nous	-
24	941262		Insert Retainer (bottom)		Appelez-nous	-
25	941259		End Cap (2)		Appelez-nous	-
26	489075		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
27	981428		Insert Door, Panel		Appelez-nous	-
28	1108762		Trim, Door Shelf (5)		Appelez-nous	-
29	WP849996		Retainer, Door Trim   (Replaces: 849996)				$ 7.95
32	1109004		Compartment Door		Appelez-nous	-
36	945120		Nameplate		Appelez-nous	-
41	520747		Tray, Butter		Appelez-nous	-
