SELECT A DIAGRAM

02 - Cabinet


03 - Refrigerator Door


04 - Freezer Door


05 - Airflow And Control


06 - Shelf


07 - Unit , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

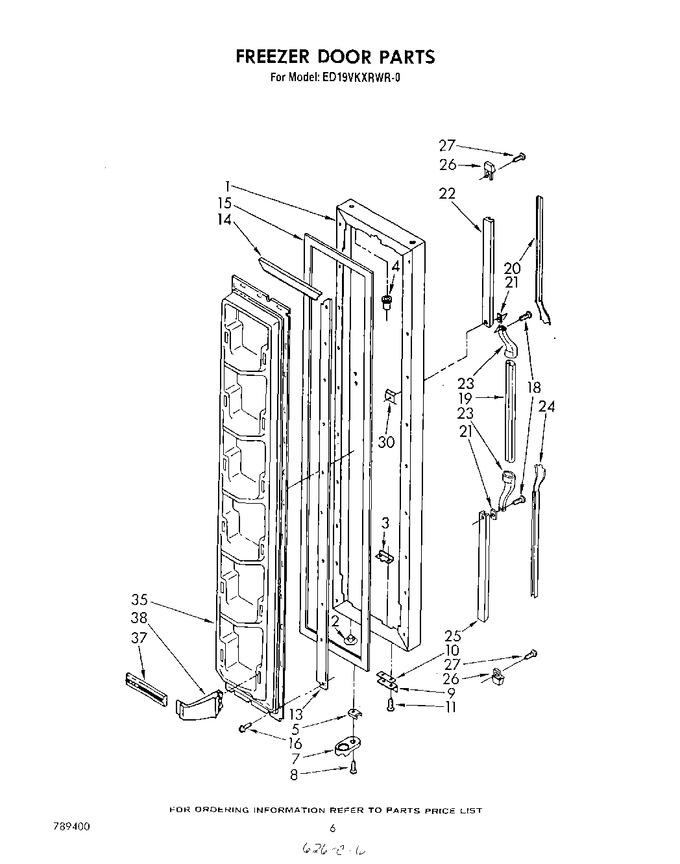

1	1101366		Freezer Door Panel (platinum)		Appelez-nous	-
1	941254		Freezer, Door Panel (white)		Appelez-nous	-
1	941256		Freezer, Door Panel (golden Harvest)		Appelez-nous	-
1	941258		Freezer, Door Panel (almond)		Appelez-nous	-
1	1101365		Freezer, Door Panel (toast)		Appelez-nous	-
2	534927		Hole Plug		Appelez-nous	-
3	988402		Tap Plate		Appelez-nous	-
4	509929		Cap, Hinge Sleeve		Appelez-nous	-
5	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
7	4318165		Door Closer, Cam   (Replaces: 986758)			Immediately	$ 29.74
8	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
9	988420		Bracket, Door Stop		Appelez-nous	-
10	988421		Shim		Appelez-nous	-
11	488549		Screw, 8 X 5/8		Appelez-nous	-
11	488930		Screw (repair)		Appelez-nous	-
13	836120		Retainer, Gasket (side) (2)		Appelez-nous	-
14	836122		Retainer, Gasket Top & Bottom (2)		Appelez-nous	-
15	2188405A		Door, Gasket Magnetic   (Replaces: 939566)				$ 368.63
16	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
16	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
18	WPW10141645		Screw, 8 X 1/2 (4)   (Replaces: 489084)				$ 8.05
19	1108897		Handle, Center		Appelez-nous	-
19	1108914		Handle, Center (for Platinum Model Only)		Appelez-nous	-
20	1108899		Insert, Handle (top) (golden Harvest)		Appelez-nous	-
20	1108901		Insert, Handle (top) (toast)		Appelez-nous	-
20	1108898		Insert, Handle (top) (white)		Appelez-nous	-
20	1108900		Insert, Handle (top) (almond)		Appelez-nous	-
20	1108902		Insert, Handle (top) (platinum)		Appelez-nous	-
21	935075		Shim, End Cap (2)		Appelez-nous	-
22	941260		Insert Retainer (top)		Appelez-nous	-
23	935103		Center End Cap (2)		Appelez-nous	-
24	1108906		Insert, Handle (bottom) (toast)		Appelez-nous	-
24	1108903		Insert, Handle (bottom) (white)		Appelez-nous	-
24	1108904		Insert, Handle (bottom) (golden Harvest)		Appelez-nous	-
24	1108905		Insert, Handle (bottom) (almond)		Appelez-nous	-
24	1108907		Insert, Handle (bottom) (platinum)		Appelez-nous	-
25	941262		Insert Retainer (bottom)		Appelez-nous	-
26	941259		End Cap (2)		Appelez-nous	-
27	489075		Screw, 10-32 X 5/8 (2)		Appelez-nous	-
30	941242		Screw Anchor		Appelez-nous	-
35	937457		Interior, Door Panel		Appelez-nous	-
37	1108763		Trim, Door Shelf		Appelez-nous	-
38	WP849996		Support Trim End   (Replaces: 849996)				$ 7.95
