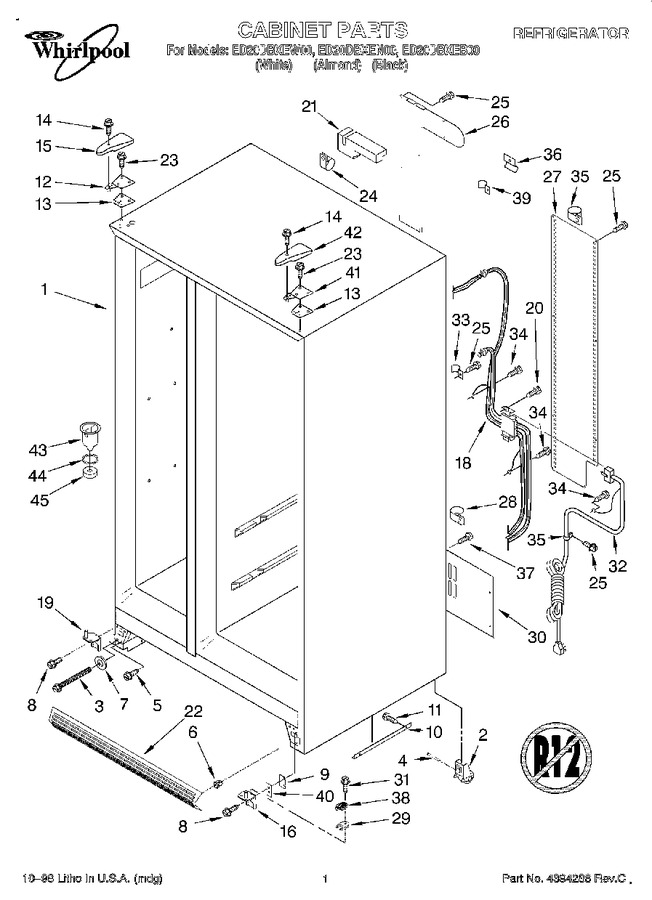

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 4343775 | Roller (4) |
|
- | |||||
| 3 | 4343784 | Screw, Rear Roller Adjust |
|
- | |||||
| 4 | 4343776 | Pin, Clevis (4) |
|
- | |||||
| 5 | 4343785 | Screw, Front Roller Adjust |
|
- | |||||
| 6 | 4343604 | Clip, Grille |
|
- | |||||
| 7 | 4343786 | Washer |
|
- | |||||
| 8 | WP67006715 | Screw (Replaces: 4343782) |
|
$ 7.19 | |||||
| 9 | 4343787 | Spacer |
|
- | |||||
| 10 | 4343774 | Support (2) |
|
- | |||||
| 11 | 4343788 | Screw |
|
- | |||||
| 12 | 4343999 | Hinge Top (l.h.) |
|
- | |||||
| 13 | 4343714 | Shim, Hinge Top |
|
- | |||||
| 14 | 4343715 | Screw |
|
- | |||||
| 15 | 4343996 | Hinge Cover (fc) (almond) |
|
- | |||||
| 15 | 4343995 | Hinge Cover (fc) (white) |
|
- | |||||
| 15 | 4343997 | Hinge Cover (fc) (black) |
|
- | |||||
| 16 | 4343781 | Hinge Bottom (r.h) (white) |
|
- | |||||
| 16 | 4343780 | Hinge Bottom (r.h) (black) |
|
- | |||||
| 18 | 4343790 | Wire Harness |
|
- | |||||
| 19 | 4343779 | Hinge Bottom (l.h) (white) |
|
- | |||||
| 19 | 4343778 | Hinge Bottom (l.h) (black) |
|
- | |||||
| 20 | WP489069 | Screw (Replaces: 4343772) |
|
Immediately | $ 7.86 | ||||
| 21 | 4343783 | Air Baffle |
|
- | |||||
| 22 | 4343607 | Grille (black) |
|
- | |||||
| 22 | 4343605 | Grille (white) |
|
- | |||||
| 22 | 4343606 | Grille (almond) |
|
- | |||||
| 23 | 4343684 | Screw |
|
- | |||||
| 24 | 4343777 | Clamp |
|
- | |||||
| 25 | 4343759 | Screw |
|
- | |||||
| 26 | 4343707 | Wire Cover |
|
- | |||||
| 27 | 4343659 | Back Cover |
|
- | |||||
| 28 | 4343705 | Clip, Water Tube |
|
- | |||||
| 29 | 4343758 | Shim, Door Closer (black) |
|
- | |||||
| 29 | 4343755 | Shim, Door Closer (white) |
|
- | |||||
| 29 | 4343756 | Shim, Door Closer (white) |
|
- | |||||
| 29 | 4343757 | Shim, Door Closer (black) |
|
- | |||||
| 30 | 4343978 | Cover, Unit |
|
- | |||||
| 31 | WP250830 | Screw (Replaces: 4343754) |
|
$ 7.95 | |||||
| 32 | 4343760 | Power Cord |
|
- | |||||
| 33 | 4343752 | Tube Clamp |
|
- | |||||
| 34 | 4343765 | Screw |
|
- | |||||
| 35 | 4343661 | Clamp |
|
- | |||||
| 36 | WPM0104106 | Clamp, Service Cord (Replaces: 4343721) |
|
$ 7.78 | |||||
| 37 | 4343979 | Screw |
|
- | |||||
| 38 | R0181181 | Door Closer, Lower Cam (2) (white) (Replaces: 4343795) |
|
Immediately | $ 7.19 | ||||
| 38 | R0181181 | Door Closer, Lower Cam (2) (black) (Replaces: 4343794) |
|
Immediately | $ 7.19 | ||||
| 39 | WPM0114003 | Clip (Replaces: 4343702) |
|
$ 11.05 | |||||
| 40 | 4343977 | Shim, Hinge |
|
- | |||||
| 41 | 4343998 | Hinge Top (r.h.) |
|
- | |||||
| 42 | 4344004 | Hinge Cover (rc) (almond) |
|
- | |||||
| 42 | 4344005 | Hinge Cover (rc) (black) |
|
- | |||||
| 42 | 4344003 | Hinge Cover (rc) (white) |
|
- | |||||
| 43 | W10815413 | Funnel, Drain (Replaces: 4344308) |
|
Immediately | $ 49.05 | ||||
| 44 | WPM0500703 | Seal (Replaces: 4344311) |
|
$ 10.92 | |||||
| 45 | WPB8381501 | Gasket (Replaces: 4344310) |
|
$ 7.41 |
