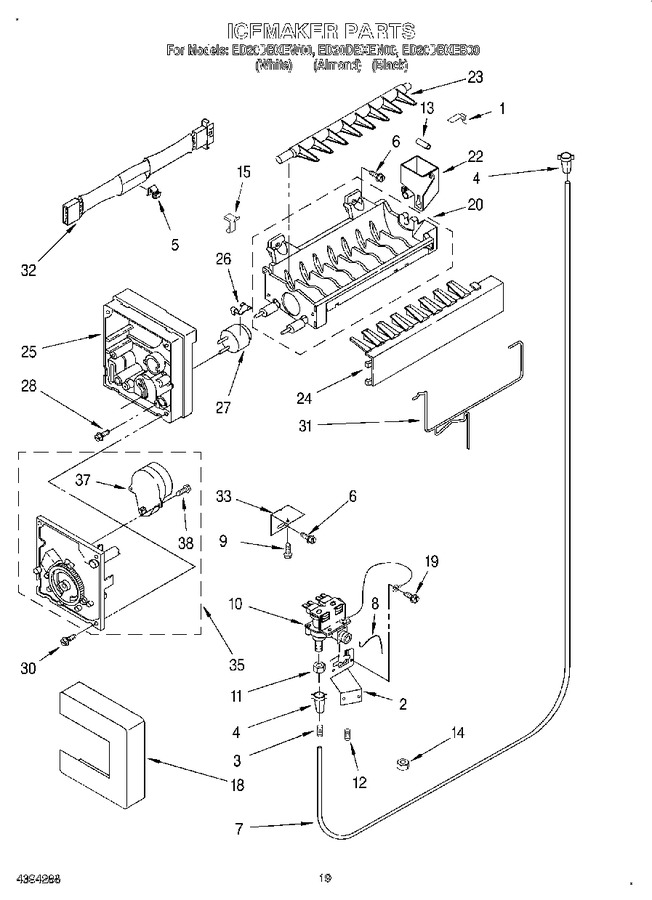

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4343703		Clip		Appelez-nous	-
2	4343706		Bracket, Water Valve		Appelez-nous	-
3	4343685		Spring		Appelez-nous	-
4	4387491		Insert, Tube   (Replaces: 4343713)				$ 7.84
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
6	WP489474		Screw (3)   (Replaces: 4343690)			Immediately	$ 7.97
7	W10823511		Tube, Water   (Replaces: 4343701)			Immediately	$ 32.41
8	4343697		Clip, Water Valve		Appelez-nous	-
9	WP489478		Screw   (Replaces: 4343652)				$ 7.75
10	4343698		Valve, Solenoid		Appelez-nous	-
11	WP627018		Nut, Compression   (Replaces: 4343704)				$ 10.97
12	4343686		Spring		Appelez-nous	-
13	4343722		Tube, Water Inlet		Appelez-nous	-
14	4343647		Nut		Appelez-nous	-
15	4343984		Clamp		Appelez-nous	-
18	4343696		Cover		Appelez-nous	-
19	681390		Screw   (Replaces: 4343694)				$ 13.06
20	WPW10190929		Mold & Heater Assembly (also Order   (Replaces: 628228)				$ 233.15
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.18
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 86.05
25	WP2195914		Support   (Replaces: 627790)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 109.18
27	542369		Cement Alumilastic)		Appelez-nous	-
28	8533917		Screw   (Replaces: 489322)				$ 13.37
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	W11807379		Shut Off Arm   (Replaces: 4343695)			Immediately	$ 60.20
32	4343983		Harness, Wiring		Appelez-nous	-
33	WP2256087		Bracket   (Replaces: 4343699)				$ 93.00
35	W10190935		Module Assembly (includes Items 37 & 38)   (Replaces: 628399)			Immediately	$ 110.07
37	W10190935		Motor   (Replaces: 628398)			Immediately	$ 110.07
38	489136		Screw				$ 10.29
100	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
100	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
100	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
100	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
100	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
100	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
100	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
100	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
100	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
100	350942		Primer White (13 Oz. Spray Can)				$ 89.66
100	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
100	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
100	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
100	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
100	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
100	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
100	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
100	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
100	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
100	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
100	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
100	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
100	833938		Kit, Terminal Connector				$ 8.07
100	4343700		Ice Container Assembly		Appelez-nous	-
100	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	1117510		Torx Key				$ 5.84
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT4344132		Energy Label		Appelez-nous	-
	LIT4343600		Tech Sheet		Appelez-nous	-
	LIT4343601		Use & Care Guide		Appelez-nous	-
	LIT4343656		Wiring Diagram		Appelez-nous	-
NI	4317943		Complete Icemaker Assembly			Immediately	$ 188.95

    View Diagram in Separate Window       Print Part List
