Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4343799 Fan Shroud Appelez-nous -
2 4343935 Retainer, Fan Motor Appelez-nous -
3 4343791 Foam Seal Appelez-nous -
4 4343749 Screw Appelez-nous -
5 4343789 Foam Seal Appelez-nous -
6 4343687 Clip Appelez-nous -
7 4344139 Fan Motor Appelez-nous -
8 R0000199 Fan Blade   (Replaces: 4343936) Special Order $ 158.10

9 4343655 Rear Cover Appelez-nous -
10 WP2264462 Fan Grommet (2)   (Replaces: 4343934) In-Stock Immediately $ 43.97

11 4343937 Bracket, Motor Appelez-nous -
12 4343671 Cover, Air Supply Appelez-nous -
13 4343688 Gasket Cover Appelez-nous -
14 4343672 Cover, Air Appelez-nous -
15 WP98165 Screw   (Replaces: 4343675) Special Order $ 8.00

16 4343673 Gasket Appelez-nous -
17 4343750 Cover, Evaporator Appelez-nous -
18 WP489464 Screw   (Replaces: 4343665) In-Stock Immediately $ 7.83

19 4343822 Gasket, Foam Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

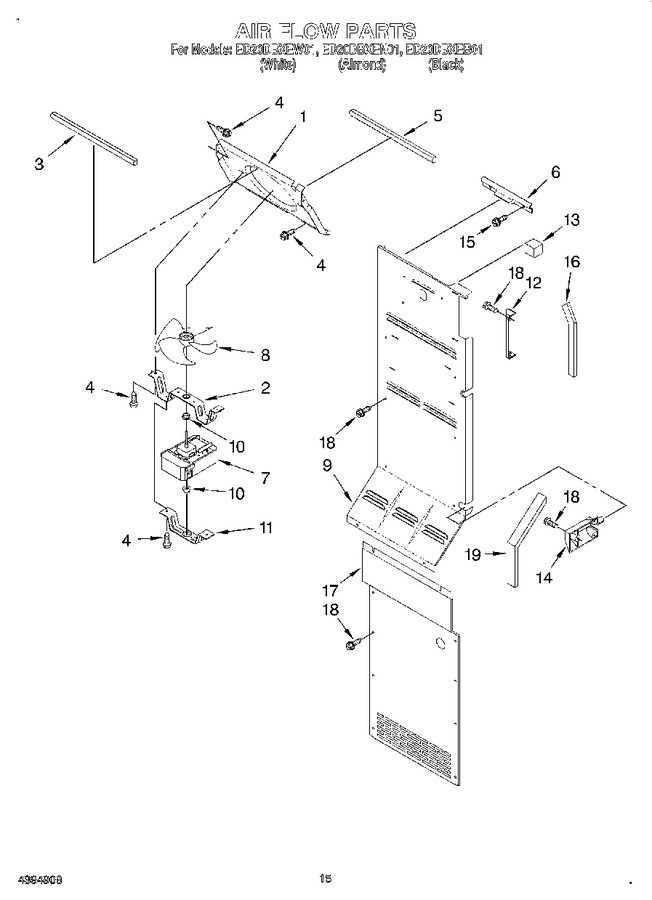

Diagram for ED20DBXEB01
