SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow

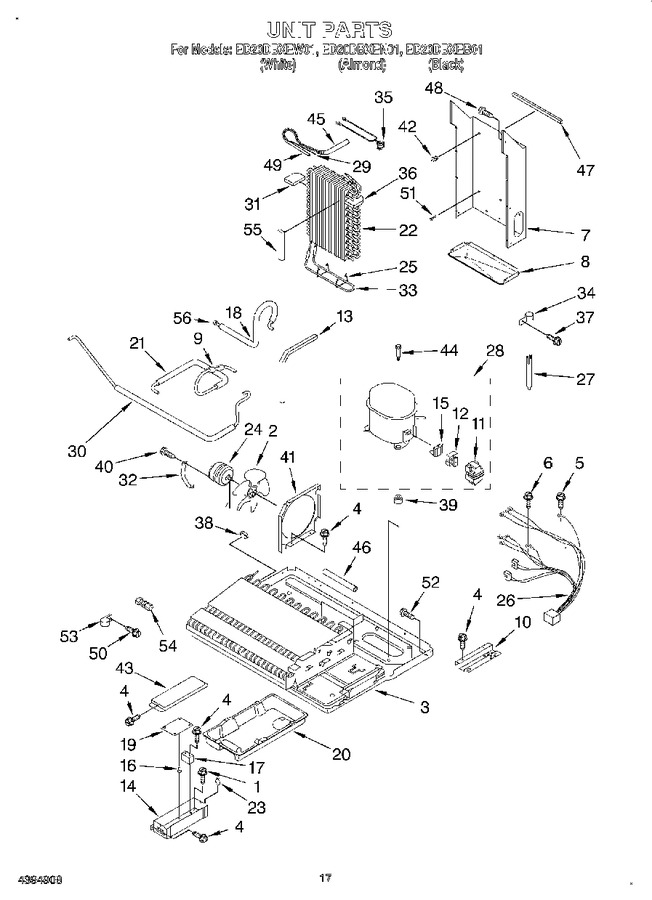

10 - Unit


11 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 4343865)				$ 7.32
2	4343843		Fan, Blade		Appelez-nous	-
3	4343841		Condenser & Pan Assembly		Appelez-nous	-
4	4343861		Screw		Appelez-nous	-
5	WP489399		Screw   (Replaces: 4343691)				$ 6.95
6	4343860		Screw		Appelez-nous	-
7	4343762		Heat Shield		Appelez-nous	-
8	4343792		Drain Pan		Appelez-nous	-
9	4343872		Dampner		Appelez-nous	-
10	4343867		Shelf, High Voltage Box		Appelez-nous	-
11	4343852		Cover		Appelez-nous	-
12	4343849		Overload		Appelez-nous	-
13	4343871		Gasket		Appelez-nous	-
14	4343854		High Voltage Box		Appelez-nous	-
15	WP10097202		Relay   (Replaces: 4343850)				$ 118.98
16	4343868		Support		Appelez-nous	-
17	4343851		Capacitor		Appelez-nous	-
18	4343870		Sleeve		Appelez-nous	-
19	4343842		Control		Appelez-nous	-
20	4343863		Drain Pan		Appelez-nous	-
21	4343857		Tube, Discharge		Appelez-nous	-
22	4343748		Evaporator		Appelez-nous	-
23	4343869		Clamp, Wire		Appelez-nous	-
24	833697		Motor, Fan (includes Speed Nut)   (Replaces: 4343855)			Immediately	$ 88.15
25	W11673433		Clip, Heater   (Replaces: 4343918)				$ 141.12
26	4343846		Harness, Unit		Appelez-nous	-
27	W10843121		Drier   (Replaces: 4343761)			Immediately	$ 52.57
28	W10309990		Compressor (includes Items 11, 12, 15, 17 & 27)   (Replaces: 4343856)			Immediately	$ 632.81
29	4343919		Heat Exchanger		Appelez-nous	-
30	4343858		Tube, Condenser/ Pc Loop		Appelez-nous	-
31	4343921		Block, Evaporator (left Side)		Appelez-nous	-
32	4343853		Bracket, Fan Motor		Appelez-nous	-
33	WP12049801		Heater, Defrost   (Replaces: 4343920)				$ 142.38
34	4343763		Clip, Drier		Appelez-nous	-
35	WP4387503		Bi-metal, Defrost   (Replaces: 4343917)			Immediately	$ 47.89
36	4343922		Block, Evaporator (right Side)		Appelez-nous	-
37	4343759		Screw		Appelez-nous	-
38	4343866		Clip, Condenser		Appelez-nous	-
39	4343845		Grommet (4)		Appelez-nous	-
40	4343859		Screw		Appelez-nous	-
41	4343862		Air Baffle		Appelez-nous	-
42	4343798		Clip, Evaporator		Appelez-nous	-
43	4343864		Cover, High Voltage Box		Appelez-nous	-
44	4343847		Screw		Appelez-nous	-
45	4343923		Cover, Tubing		Appelez-nous	-
46	4343844		Sleeve		Appelez-nous	-
47	4343789		Seal		Appelez-nous	-
48	4343749		Screw		Appelez-nous	-
49	4343924		Sleeve		Appelez-nous	-
50	WP489478		Screw   (Replaces: 4343652)				$ 7.75
51	4343797		Clip, Evaporator		Appelez-nous	-
52	4343764		Screw		Appelez-nous	-
53	4343705		Clip, Tube		Appelez-nous	-
54	4343648		Union		Appelez-nous	-
55	4343753		Gasket, Foam		Appelez-nous	-
56	876764		Valve, Access(3/16``)			Immediately	$ 91.35
56	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
56	978028		Valve, Access (1/2)		Appelez-nous	-
56	978029		Valve Access (5/8``)				$ 93.85
56	978030		Valve, Access (3/4``)				$ 130.71
56	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
56	4343848		Tube, Suction		Appelez-nous	-
56	978026		Valve, Access (5/16``)			Immediately	$ 128.09
