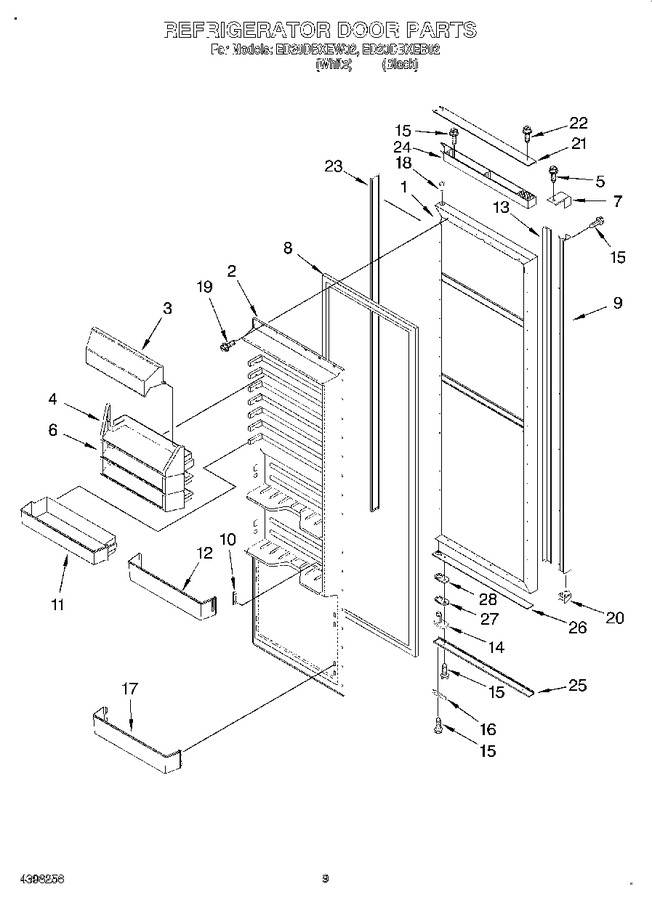

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344026		Refrigerator Door Panel (includes Insulation) (black)		Appelez-nous	-
1	4344024		Refrigerator Door Panel (includes Insulation) (white)		Appelez-nous	-
2	4343804		Interior Panel		Appelez-nous	-
3	4343816		Door, Dairy		Appelez-nous	-
4	4343809		Shelf, Dairy		Appelez-nous	-
5	4343693		Screw		Appelez-nous	-
6	4343817		Shelf Bin (2)		Appelez-nous	-
7	4344023		Cap, Handle Top (silver)		Appelez-nous	-
7	4344021		Cap, Handle Top (white)		Appelez-nous	-
8	4343812		Door Gasket, Magnetic (white)		Appelez-nous	-
8	4343813		Door Gasket, Magnetic (black)		Appelez-nous	-
9	4343988		Door Handle (silver)		Appelez-nous	-
9	4343986		Door Handle (white)		Appelez-nous	-
10	4343810		Clip, Retainer		Appelez-nous	-
11	4343815		Shelf Bin		Appelez-nous	-
12	4343805		Shelf Bin (2)		Appelez-nous	-
13	4343991		Insert, Handle (silver)		Appelez-nous	-
13	4343989		Insert, Handle (white)		Appelez-nous	-
14	R0181181		Door Closer, Upper Cam (white)   (Replaces: 4343939)			Immediately	$ 7.19
14	R0181181		Door Closer, Upper Cam (black)   (Replaces: 4343938)			Immediately	$ 7.19
15	WP98165		Screw   (Replaces: 4343675)				$ 8.00
16	8170289		Bracket, Door Stop (black)		Appelez-nous	-
16	8170290		Bracket, Door Stop (white)		Appelez-nous	-
17	4343814		Shelf Bin (2)		Appelez-nous	-
18	4343942		Hinge Sleeve (black)		Appelez-nous	-
18	4343943		Hinge Sleeve (white)		Appelez-nous	-
19	8170322		Screw		Appelez-nous	-
20	4344014		Cap, Bottom (silver)		Appelez-nous	-
20	4344012		Cap, Bottom (white)		Appelez-nous	-
21	4343612		Trim, Door (top) (white)		Appelez-nous	-
21	8170317		Trim, Door (top) (silver)		Appelez-nous	-
22	4343611		Screw		Appelez-nous	-
23	4343616		Trim, Door (side) (white)		Appelez-nous	-
23	4343615		Trim, Door (side) (silver)		Appelez-nous	-
24	4344011		Extension (black)		Appelez-nous	-
24	4344009		Extension (white)		Appelez-nous	-
25	4344029		Trim, Door (silver)		Appelez-nous	-
25	4344027		Trim, Door (white)		Appelez-nous	-
26	4344030		Support, Insert		Appelez-nous	-
27	8170324		Shim, Door Closer (white)		Appelez-nous	-
27	8170323		Shim, Door Closer (black)		Appelez-nous	-
28	4378870		Perimiter Trim Kit (silver)		Appelez-nous	-
28	4378872		Perimiter Trim Kit (white)		Appelez-nous	-
28	8170326		Shim, Door Closer (white)		Appelez-nous	-
28	8170325		Shim, Door Closer (black)		Appelez-nous	-
