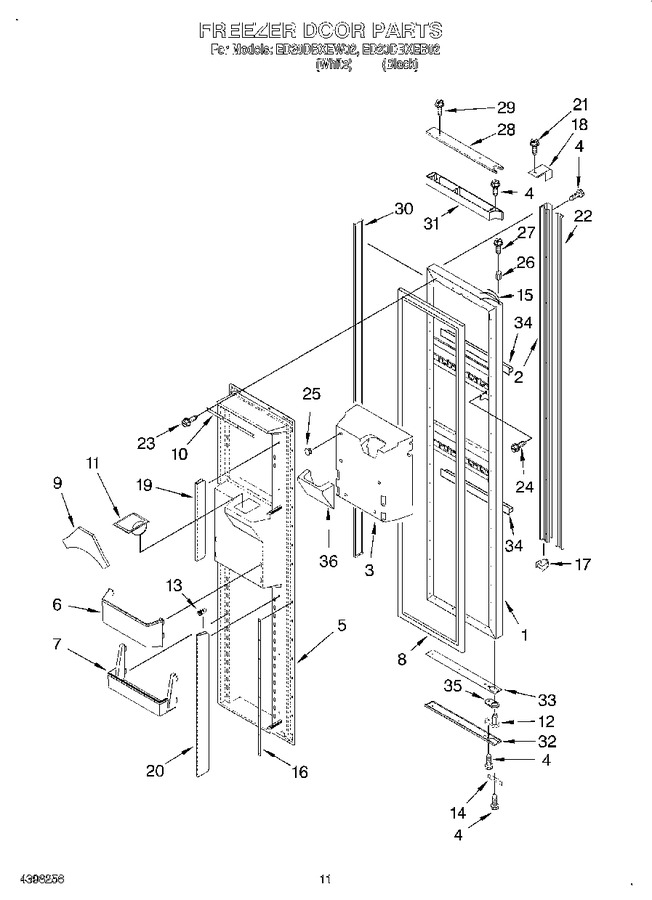

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4344033 | Freezer Door Panel (includes Insulation) (black) |
|
- | |||||
| 1 | 4344031 | Freezer Door Panel (includes Insulation) (white) |
|
- | |||||
| 2 | 4343992 | Handle (white) |
|
- | |||||
| 2 | 4343994 | Handle (silver) |
|
- | |||||
| 3 | 8170327 | Insulation, Dispenser Cavity |
|
- | |||||
| 4 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.00 | |||||
| 5 | 4343821 | Interior Panel |
|
- | |||||
| 6 | 4343747 | Trivet, Shelf |
|
- | |||||
| 7 | 4343746 | Shelf Bin (4) |
|
- | |||||
| 8 | 4343833 | Door Gasket, Magnetic (white) |
|
- | |||||
| 8 | 4343834 | Door Gasket, Magnetic (black) |
|
- | |||||
| 9 | 4343634 | Seal, Ice Chute |
|
- | |||||
| 10 | 4343824 | Retainer (top & Bottom) |
|
- | |||||
| 11 | 4343633 | Chute, Ice |
|
- | |||||
| 12 | R0181181 | Door Closer, Upper Cam (black) (Replaces: 4343940) |
|
Immediately | $ 7.19 | ||||
| 12 | R0181181 | Door Closer, Upper Cam (white) (Replaces: 4343941) |
|
Immediately | $ 7.19 | ||||
| 13 | 4343825 | Clip, Removable Door Dike |
|
- | |||||
| 14 | 8170289 | Bracket, Door Stop (black) |
|
- | |||||
| 14 | 8170290 | Bracket, Door Stop (white) |
|
- | |||||
| 15 | 4343826 | Harness, Door |
|
- | |||||
| 16 | 4343835 | Retainer (side) |
|
- | |||||
| 17 | 4344017 | Cap, Bottom (silver) |
|
- | |||||
| 17 | 4344015 | Cap, Bottom (white) |
|
- | |||||
| 18 | 4344020 | Cap, Top (silver) |
|
- | |||||
| 18 | 4344018 | Cap, Top (white) |
|
- | |||||
| 19 | 4343836 | Removable Door Dike, Top |
|
- | |||||
| 20 | 4343837 | Removable Door Dike, Bottom |
|
- | |||||
| 21 | 4343693 | Screw |
|
- | |||||
| 22 | 4344000 | Insert, Handle (white) |
|
- | |||||
| 22 | 4344002 | Insert, Handle (silver) |
|
- | |||||
| 23 | 8170322 | Screw (42) |
|
- | |||||
| 24 | WP489399 | Screw (Replaces: 4343691) |
|
$ 6.95 | |||||
| 25 | 8170293 | Button Plug |
|
- | |||||
| 26 | WP67004977 | Hinge Sleeve (white) (Replaces: 4343945) |
|
$ 7.81 | |||||
| 26 | 4343944 | Hinge Sleeve (black) |
|
- | |||||
| 27 | 4343725 | Screw, Ground |
|
- | |||||
| 28 | 4343608 | Trim, Door (top) (white) |
|
- | |||||
| 28 | 4343610 | Trim, Door (top) (silver) |
|
- | |||||
| 29 | 4343611 | Screw |
|
- | |||||
| 30 | 8170321 | Trim, Door (side) (white) |
|
- | |||||
| 30 | 4343636 | Trim, Door (side) (silver) |
|
- | |||||
| 31 | 4344008 | Extension (black) |
|
- | |||||
| 31 | 4344006 | Extension (white) |
|
- | |||||
| 32 | 4344034 | Trim, Door (white) |
|
- | |||||
| 32 | 4344036 | Trim, Door (silver) |
|
- | |||||
| 33 | 4344037 | Support, Insert |
|
- | |||||
| 34 | 8170315 | Retainer, Decorative Panel (black) |
|
- | |||||
| 34 | 8170314 | Retainer, Decorative Panel (white) |
|
- | |||||
| 35 | 8170324 | Shim, Door Closer (white) |
|
- | |||||
| 35 | 8170323 | Shim, Door Closer (black) |
|
- | |||||
| 36 | 8170328 | Insulation, Dispenser Chute |
|
- |
