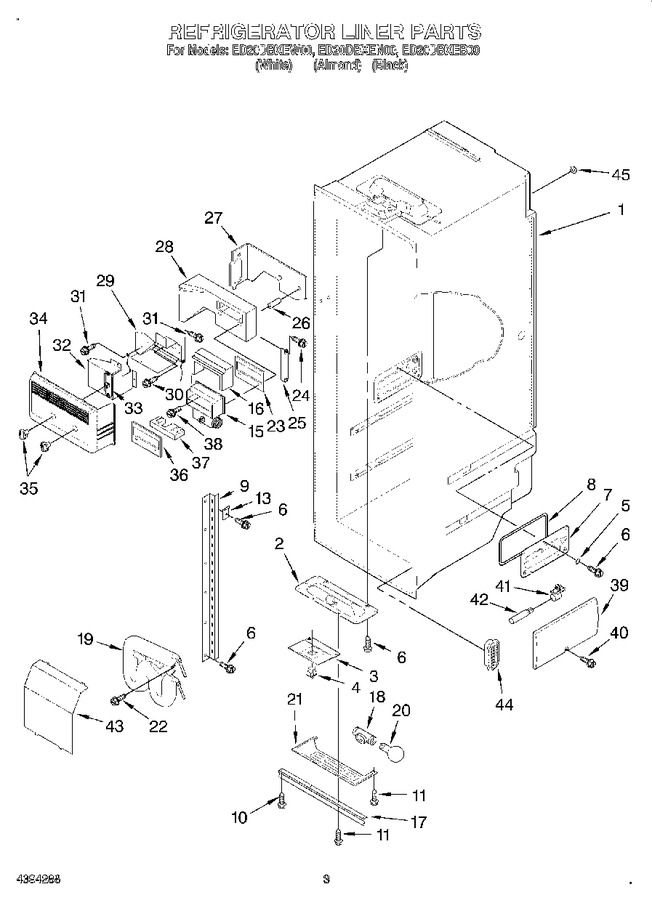

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4343927		Housing, Top Light		Appelez-nous	-
3	4343928		Cover, Light Switch		Appelez-nous	-
4	W11384469		Switch, Light   (Replaces: 4343930)			Immediately	$ 37.23
5	4343682		Clip, Ground		Appelez-nous	-
6	WP489478		Screw   (Replaces: 4343652)				$ 7.75
7	4343932		Housing, Side Light		Appelez-nous	-
8	4343933		Gasket		Appelez-nous	-
9	4343976		Shelf Ladder (right Side)		Appelez-nous	-
9	4343975		Shelf Ladder (left Side)		Appelez-nous	-
10	WP489464		Screw   (Replaces: 4343665)			Immediately	$ 7.83
11	4343727		Screw (4)		Appelez-nous	-
13	4343692		Bracket Retainer		Appelez-nous	-
15	4343649		Control, Damper		Appelez-nous	-
16	4343666		Insulation, Damper		Appelez-nous	-
17	4343654		Shield, Light		Appelez-nous	-
18	4343642		Socket, Dual		Appelez-nous	-
19	4343773		Reservoir		Appelez-nous	-
20	W11679940		Light Bulb (2)   (Replaces: 4343660)			Immediately	$ 11.30
21	4343726		Light Lens, Top		Appelez-nous	-
22	WP98165		Screw   (Replaces: 4343675)				$ 8.00
23	4343681		Gasket, Damper		Appelez-nous	-
24	WP489474		Screw   (Replaces: 4343690)			Immediately	$ 7.97
25	4343689		Clamp, Air Duct		Appelez-nous	-
26	4343676		Spacer, Damper		Appelez-nous	-
27	4343683		Gasket, Air Duct		Appelez-nous	-
28	4343658		Air Duct		Appelez-nous	-
29	4343668		Bracket, Rear		Appelez-nous	-
30	WP489464		Screw (4)   (Replaces: 4343669)			Immediately	$ 7.83
31	WP489399		Screw (2)   (Replaces: 4343691)				$ 6.95
32	4343677		Thermostat Bracket		Appelez-nous	-
33	R0161092		Thermostat   (Replaces: 4343711)				$ 216.18
34	4344060		Cover, Control		Appelez-nous	-
35	4343710		Knob, Thermostat		Appelez-nous	-
36	4343724		Gasket, Front		Appelez-nous	-
37	4343650		Insert		Appelez-nous	-
38	4343674		Screw		Appelez-nous	-
39	4343751		Light Lens, Side		Appelez-nous	-
40	4343749		Screw		Appelez-nous	-
41	4343800		Light Socket		Appelez-nous	-
42	WP548049		Light Bulb   (Replaces: 4343796)				$ 86.35
43	4343646		Cover, Reservior		Appelez-nous	-
44	4343925		Grille, Air Return		Appelez-nous	-
45	4343926		Plug, Button		Appelez-nous	-
