SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Air Flow


10 - Unit


11 - Icemaker, Lit/optional

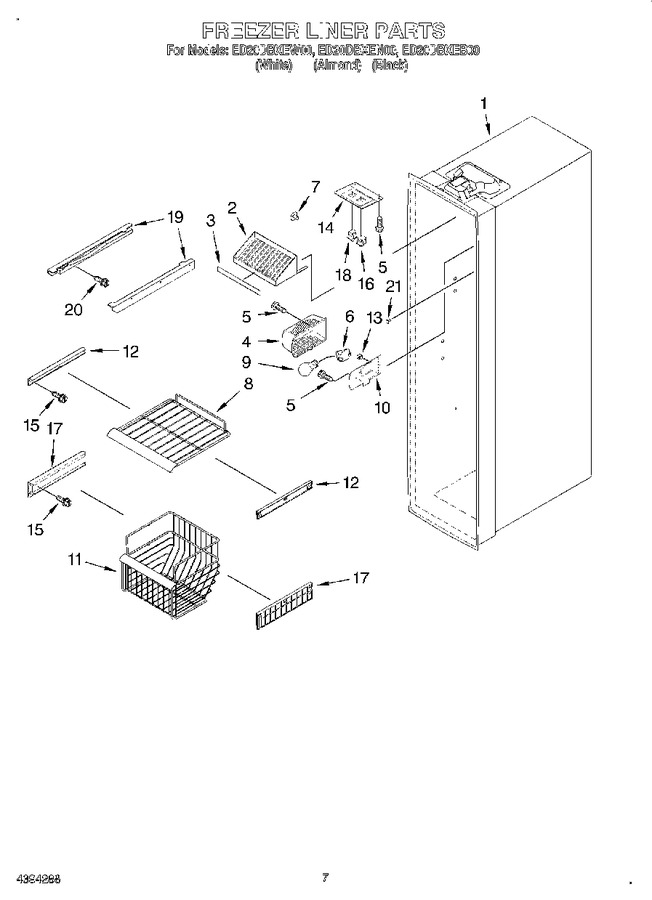

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4343980		Top Shelf		Appelez-nous	-
3	4343981		Insert, Top Shelf		Appelez-nous	-
4	4343645		Light Lens		Appelez-nous	-
5	WP489464		Screw   (Replaces: 4343665)			Immediately	$ 7.83
6	4343643		Light Socket		Appelez-nous	-
7	4343723		Support, Stud (2)		Appelez-nous	-
8	4343662		Shelf (3)		Appelez-nous	-
9	W11679940		Light Bulb   (Replaces: 4343660)			Immediately	$ 11.30
10	4343644		Plate, Socket		Appelez-nous	-
11	4343720		Basket, Slope		Appelez-nous	-
12	4343745		Shelf Track (single) (left Side)		Appelez-nous	-
12	4343744		Shelf Track (single) (right Side)		Appelez-nous	-
13	4343682		Clip, Ground		Appelez-nous	-
14	4343929		Cover, Switch		Appelez-nous	-
15	WP98165		Screw   (Replaces: 4343675)				$ 8.00
16	W11384469		Switch, Light   (Replaces: 4343930)			Immediately	$ 37.23
17	4343663		Shelf Track (left Side (2))		Appelez-nous	-
17	4343664		Shelf Track (right Side (2))		Appelez-nous	-
18	WP4387911		Switch, Fan   (Replaces: 4343931)			Immediately	$ 39.66
19	67005375		Slide, Ice Container (left Side)   (Replaces: 4343709)				$ 297.92
19	4343708		Slide, Ice Container (right Side)		Appelez-nous	-
20	4343653		Screw		Appelez-nous	-
21	4343657		Grommet, Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
