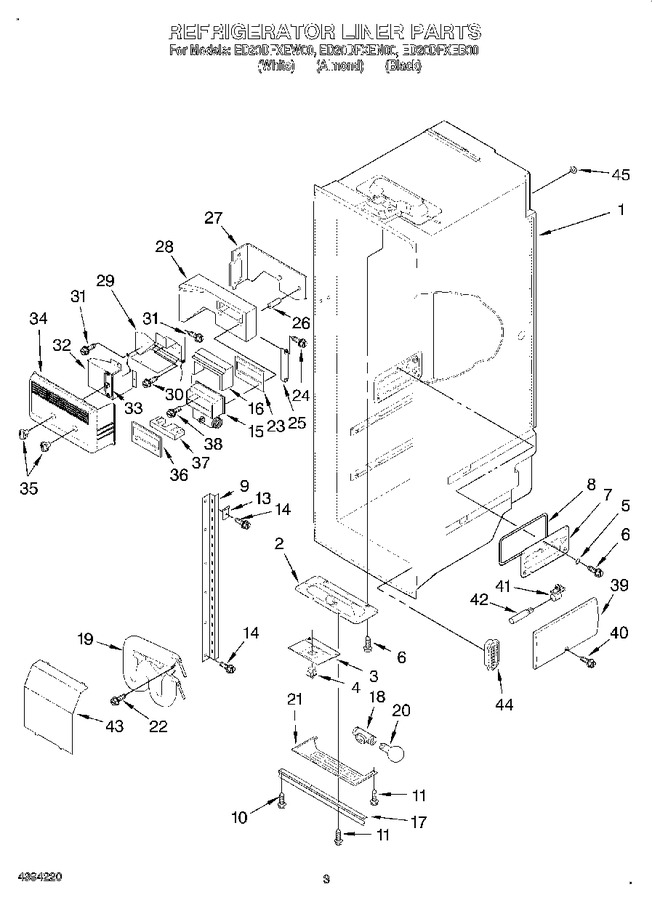

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 4343927 | Housing, Top Light |
|
- | |||||
| 3 | 4343928 | Cover, Light Switch |
|
- | |||||
| 4 | W11384469 | Switch, Light (Replaces: 4343930) |
|
Immediately | $ 37.23 | ||||
| 5 | 4343682 | Clip, Ground |
|
- | |||||
| 6 | WP489478 | Screw (Replaces: 4343652) |
|
$ 7.75 | |||||
| 7 | 4343932 | Housing, Side Light |
|
- | |||||
| 8 | 4343933 | Gasket |
|
- | |||||
| 9 | 4343976 | Shelf Ladder (right Side) |
|
- | |||||
| 9 | 4343975 | Shelf Ladder (left Side) |
|
- | |||||
| 10 | WP489464 | Screw (Replaces: 4343665) |
|
Immediately | $ 7.83 | ||||
| 11 | 4343727 | Screw (4) |
|
- | |||||
| 13 | 4343692 | Bracket Retainer |
|
- | |||||
| 14 | WP489478 | Screw (Replaces: 4343652) |
|
$ 7.75 | |||||
| 15 | 4343649 | Control, Damper |
|
- | |||||
| 16 | 4343666 | Insulation, Damper |
|
- | |||||
| 17 | 4343654 | Shield, Light |
|
- | |||||
| 18 | 4343642 | Socket, Dual |
|
- | |||||
| 19 | 4343773 | Reservoir |
|
- | |||||
| 20 | W11679940 | Light Bulb (2) (Replaces: 4343660) |
|
Immediately | $ 11.30 | ||||
| 21 | 4343726 | Light Lens, Top |
|
- | |||||
| 22 | WP98165 | Screw (Replaces: 4343675) |
|
$ 8.00 | |||||
| 23 | 4343681 | Gasket, Damper |
|
- | |||||
| 24 | WP489474 | Screw (Replaces: 4343690) |
|
Immediately | $ 7.97 | ||||
| 25 | 4343689 | Clamp, Air Duct |
|
- | |||||
| 26 | 4343676 | Spacer, Damper |
|
- | |||||
| 27 | 4343683 | Gasket, Air Duct |
|
- | |||||
| 28 | 4343658 | Air Duct |
|
- | |||||
| 29 | 4343668 | Bracket, Rear |
|
- | |||||
| 30 | WP489464 | Screw (4) (Replaces: 4343669) |
|
Immediately | $ 7.83 | ||||
| 31 | WP489399 | Screw (2) (Replaces: 4343691) |
|
$ 6.95 | |||||
| 32 | 4343677 | Thermostat Bracket |
|
- | |||||
| 33 | R0161092 | Thermostat (Replaces: 4343711) |
|
$ 216.18 | |||||
| 34 | 4344060 | Cover, Control |
|
- | |||||
| 35 | 4343710 | Knob, Thermostat |
|
- | |||||
| 36 | 4343724 | Gasket, Front |
|
- | |||||
| 37 | 4343650 | Insert |
|
- | |||||
| 38 | 4343674 | Screw |
|
- | |||||
| 39 | 4343751 | Light Lens, Side |
|
- | |||||
| 40 | 4343749 | Screw |
|
- | |||||
| 41 | 4343800 | Light Socket |
|
- | |||||
| 42 | WP548049 | Light Bulb (Replaces: 4343796) |
|
$ 86.35 | |||||
| 43 | 4343646 | Cover, Reservior |
|
- | |||||
| 44 | 4343925 | Grille, Air Return |
|
- | |||||
| 45 | 4343926 | Plug, Button |
|
- |
