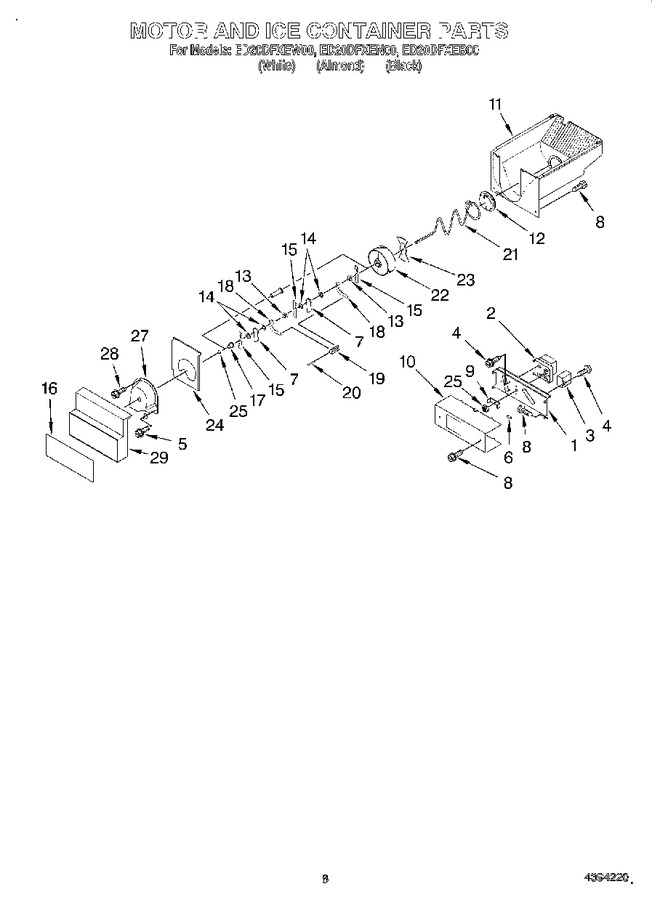

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4343667		Bracket, Motor		Appelez-nous	-
2	4343639		Motor, Dispenser		Appelez-nous	-
3	4343712		Capacitor		Appelez-nous	-
4	WPW10139210		Screw   (Replaces: 4343670)				$ 7.50
5	4343898		Screw		Appelez-nous	-
6	4343982		Clip, Wiring		Appelez-nous	-
7	4343904		Damper, Ice		Appelez-nous	-
8	WP489464		Screw   (Replaces: 4343665)			Immediately	$ 7.83
9	4343640		Coupling, Motor		Appelez-nous	-
10	4343638		Cover, Motor		Appelez-nous	-
11	4343896		Ice Container		Appelez-nous	-
12	WPD7749401		Stop, Cone   (Replaces: 4343893)				$ 27.63
13	4343905		Spacer, Step (2)		Appelez-nous	-
14	4343890		Spacer, Wavered		Appelez-nous	-
15	4343903		Blade, Rotary		Appelez-nous	-
16	4343892		Insert, Cover		Appelez-nous	-
17	4343902		Spacer		Appelez-nous	-
18	4343901		Blade, Fixed (2)		Appelez-nous	-
19	4343907		Block, Blade		Appelez-nous	-
20	4343906		Roll Pin		Appelez-nous	-
21	4343894		Conveyor		Appelez-nous	-
22	4343895		Drum		Appelez-nous	-
23	4343891		Drive Bar		Appelez-nous	-
24	4343899		Front, Ice Crusher		Appelez-nous	-
25	4343641		Nut, Locking		Appelez-nous	-
27	4343900		Housing, Crusher		Appelez-nous	-
28	4343908		Screw		Appelez-nous	-
29	4343897		Front Cover, Ice Container		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
